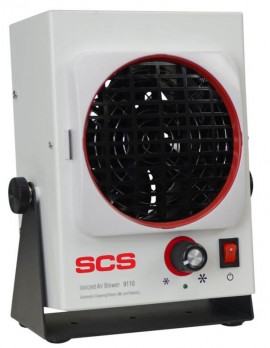

SCS 9110-NO Benchtop Air Ionizer with Power Adapter

Model: 9110-NO

Be the first to review this product

This benchtop air ionizer with a power adapter is designed with a built-in automatic emitter points cleaner to periodically clean the emitter points.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Ionizers category for similar products.

Or let's do a search and help you find what you need:

SCS 9110-NO Offers

This benchtop air ionizer has an easy-access cover for fan and emitter maintenance.

Features

Built-in automatic emitter point cleaner
Eliminates the build-up of static charges on insulative materials in a work area
Steady-state DC ionization
Adjustable fan speeds
Illuminated power switch
White powder-coated metal housing
Power cord sold separately

Applications

ESD safe rubber matting provides protection against static discharge and resistant against solder, heat, and most common solvents

SCS 9110-NO Specifications

Input Voltage and Frequency (External Adapter)	AC/DC Power Adapter Power Input: 100-240 VAC, 50/60 Hz	Power Output: 24 VDC, 2.5 A	Cable Length: 11' (3.4 m) (including AC/DC Adapter) Indoor use only
Operating Voltage	24 VDC, 1.8 A maximum
Power Consumption	14 Watts (normal operation) 42 Watts (auto cleaning operation)
Emitter Point Cleaning	Two-way Automatic Cleaning Interval: 1 time per hour (4 cycles each time)
Indicators	LED: Red power ON
Fuse	2.0 A, 250 V, 5.2 x 20 mm Glass Tube
Ion Emission	Steady-state DC
Balance Voltage	± 15 Volt (25 ± 5°C, 45 ± 10% RH)
Decay Time	≤ 2.0 sec.

Click here for complete specifications on the SCS 9110-NO

What's included with the SCS 9110-NO

Benchtop Air Ionizer
Certificate of Calibration
Power Adapter, 100-240 VAC Input, No Power Cord
Ground Wire
