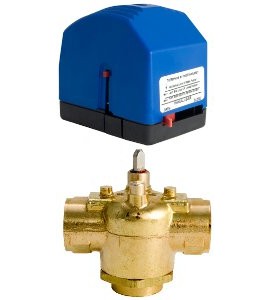

The Schneider Electric VM series modulating PopTop zone valves offer a wide variety of CV ranges and control signal options for hot and chilled water. The PopTop valves are designed with removable actuators with tri-state or proportional control and either non-spring or spring return action.
The Schneider Electric VM series modulating PopTop zone valves offer a wide variety of CV ranges and control signal options for hot and chilled water. The PopTop valves are designed with removable actuators with tri-state or proportional control and either non-spring or spring return action.
The valves are available in two- and three-way body patterns, 1/2" to 1-1/4" sizes, and in NPT or sweat pipe (SW) connections. An optional motor timeout actuator is available for controllers that do not automatically turn off their signals after the full stroke of the valve.
Features
| Valve Assembly | |
| Body Size | 3/4 in |
| Configuration | 3-Way Mixing |
| Type | Zone |
| Connection | NPT |
| Material Trim | Brass |
| Flow Coefficient | 4 cv |
| Control Media | Glycol 25 to 60% and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VM3 |
| Actuator | |
| Close-Off Pressure | 20 PSI |
| Actuator Type | Electric |
| Control Signal | Proportional |
| Control Signal Range | 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally closed |
| Power Input Voltage | 24 VAC |
| Leads and Connections | No Leads |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Body | VM3323 |
| Valve Linkage | None, tool-less connection |
| Actuator | AP13A000 |
| Actuator Range | Erie PopTop |
| Valve Assembly | |
| Body Size | 3/4 in |
| Configuration | 3-Way Mixing |
| Type | Zone |
| Connection | NPT |
| Material Trim | Brass |
| Flow Coefficient | 4 cv |
| Control Media | Glycol 25 to 60% and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VM3 |
| Actuator | |
| Close-Off Pressure | 20 PSI |
| Actuator Type | Electric |
| Control Signal | Proportional |
| Control Signal Range | 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally closed |
| Power Input Voltage | 24 VAC |
| Leads and Connections | No Leads |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Body | VM3323 |
| Valve Linkage | None, tool-less connection |
| Actuator | AP13A000 |
| Actuator Range | Erie PopTop |
