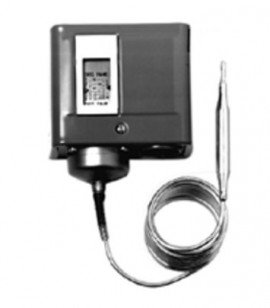

Offering reliable low-limit protection, this thermostat features a manual reset dual output switch and a temperature range from 15 to 55°F (-9 to 13°C). In addition, a single calibrated scale displays both cut-in and cut-out points, with easy access for adjustment.
Offering reliable low-limit protection, this thermostat features a manual reset dual output switch and a temperature range from 15 to 55°F (-9 to 13°C). In addition, a single calibrated scale displays both cut-in and cut-out points, with easy access for adjustment.
The TC-5242 single-pole controls are supplied with adjustable 15 to 55°F (-9 to 13°C) temperature range and include a separate reverse-acting auxiliary contact.
All Series TC-5242 controls are designed for use only as operating controls. Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of the installer to add devices (safety, limit controls) or systems (alarm, supervisory systems) that protect against, or warn of, control failure.
Features
Applications
| Temperature Range | Adjustable range of 15 to 55° F ( -9 to 13° C). Low limit stop factory set and sealed at 35° F (2° C) |
| Type | Low limit, single pole thermostat |
| Adjusting | Screwdriver slot, adjusting knob on differential or range screw when required |
| Contact Action | Open on rise, close on rise, SPDT, as required |
| Final Result for Connectable | Not connectable |
| Final Result for Flywheel Performance Tracking | Non flywheel |
| Product or Component Type | Thermostat |
| Weight | Shipping: 2.5 lbs (1.1 kg), with knob |
| Dimensions | 4 x 3-1/4 x 2" ( 1016 x 826 x 508 mm) |
| Temperature Range | Adjustable range of 15 to 55° F ( -9 to 13° C). Low limit stop factory set and sealed at 35° F (2° C) |
| Type | Low limit, single pole thermostat |
| Adjusting | Screwdriver slot, adjusting knob on differential or range screw when required |
| Contact Action | Open on rise, close on rise, SPDT, as required |
| Final Result for Connectable | Not connectable |
| Final Result for Flywheel Performance Tracking | Non flywheel |
| Product or Component Type | Thermostat |
| Weight | Shipping: 2.5 lbs (1.1 kg), with knob |
| Dimensions | 4 x 3-1/4 x 2" ( 1016 x 826 x 508 mm) |
