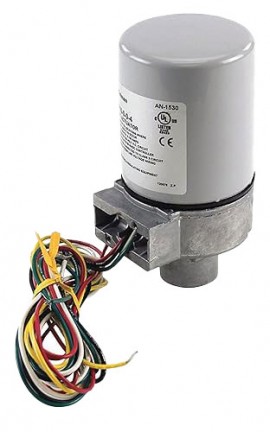

An electronic spring return proportional hydraulic actuator that has a power input of 120 VAC, and torque of 15 lb-in. This is designed for precise damper and valve control, supports 4 to 20 ADC input signals and automatically returns to its normal position during power loss.
An electronic spring return proportional hydraulic actuator that has a power input of 120 VAC, and torque of 15 lb-in. This is designed for precise damper and valve control, supports 4 to 20 ADC input signals and automatically returns to its normal position during power loss.
Features
| Inputs | |
| Control Circuit | Two-Wire |
| Input Impedence | 82.5 Ω for 4 to 20 mA input |
| Power Input | AC Voltage ± 10%: 120 50/60 Hz: 18 VA (18 Watts) |
| Connections | Color-coded 4' (1.2 m) leads |
| Outputs | |
| Position Signals | Internal feedback circuitry provides positive positioning of the damper in relation to the controller signal |
| Start Point Adjustment | Adjustable potentiometer provides manual adjustment of the actuator startpoint |
| Stroke | Damper: Approximately 2" (51 mm) from fully retracted to fully extended (includes AM-601 linkage) Valve: Approximately 9/16" (14.3 mm) from fully retracted to fully extended |
| Nominal Damper Area | Actuator selection should be made in accordance with damper manufacturer’s specifications |
| Output Torque Rating | 15 lb-in (1.69 N-m) |
| Environment | |
| Ambient Temperature Limits | Shipping and Storage: -40 to 140°F (-40 to 71°C) Operating: -20 to 140°F (-29 to 60°C) Damper:-20 to 140°F (-29 to 60°C) |
| Humidity | 5 to 95% RH, non-condensing |
| Location | NEMA Type 1, indoor only |
Click on a category to view a selection of compatible accessories with the Schneider Electric MPR-5610 Electronic Spring Return Proportional Hydraulic Actuator, 120 VAC, 15 lb-in, 4 to 20 ADC.
