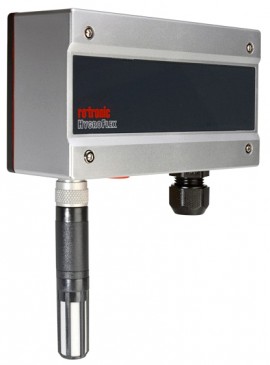

Rotronic HF52W-X1.1.01 Temperature/Humidity Transmitter, 2-wire, Wall mount no LCD

Model: HF52W-X1.1.01

Be the first to review this product

The latest development in two-channel transmitters for the exact measurement of humidity and temperature that also features the possibility to output any psychrometric calculation as an analogue signal.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Humidity and Moisture category for similar products.

Or let's do a search and help you find what you need:

Rotronic HF52W-X1.1.01 Offers

Features

Designed for fixed installation in HVAC/R and industrial applications
Relative humidity and temperature measurement with an accuracy of <0.8% R.H. and <0.1 K at 23°C
Dew Point and other psychrometric calculations
Compatible with HygroClip2 plug-in probes with integrated AirChip3000 technology
Compensates humidity and temperature over 30,000 reference points
Dew/frost point calculation
Active alarming and information
ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip
Wide choice of interchangeable probes to satisfy every application and to facilitate routine calibrations
Configuration by keypad possible
Two freely selectable and scalable analogue outputs
Various digital outputs available
External data logging function with 2000 data point memory
Robust industrial housing with IP65 protection rating
Wall mount version

Rotronic HF52W-X1.1.01 Specifications

Temperature Output Range	-100 to 200°C (-148 to 392°F), probe dependent
Humidity Output Range	0 to 100% RH
Output Signals (analogue)	Scalable by user 0-1V, 0-5V, 0-10V, 0(4)-20mA
Digital Outputs (optional)	Ethernet (LAN, WLAN), USB, RS-485
Supply Voltage	10-28VDC
Circuit Type	2 x 2 wires
Min/Max Load	V-signal: ≥1k/V / mA-signal: ≤500
Data Logging	External, 2000 data point memory
Psychrometric Calculations	All selectable

Click here for complete specifications on the Rotronic HF52W-X1.1.01

What's included with the Rotronic HF52W-X1.1.01

Transmitter with HC2-S probe

datasheet for the Rotronic HF52W-X1.1.01 Temperature/Humidity Transmitter, 2-wire, Wall mount no LCD manual for the Rotronic HF52W-X1.1.01 Temperature/Humidity Transmitter, 2-wire, Wall mount no LCD

Ask a question about Rotronic HF52W-X1.1.01 Temperature/Humidity Transmitter, 2-wire, Wall mount no LCD

Customer Reviews for the Rotronic HF52W-X1.1.01

Description ➕➖

Rotronic HF52W-X1.1.01 Offers

Features

Designed for fixed installation in HVAC/R and industrial applications
Relative humidity and temperature measurement with an accuracy of <0.8% R.H. and <0.1 K at 23°C
Dew Point and other psychrometric calculations
Compatible with HygroClip2 plug-in probes with integrated AirChip3000 technology
Compensates humidity and temperature over 30,000 reference points
Dew/frost point calculation
Active alarming and information
ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip
Wide choice of interchangeable probes to satisfy every application and to facilitate routine calibrations
Configuration by keypad possible
Two freely selectable and scalable analogue outputs
Various digital outputs available
External data logging function with 2000 data point memory
Robust industrial housing with IP65 protection rating
Wall mount version

Specifications ➕➖

Rotronic HF52W-X1.1.01 Specifications

Temperature Output Range	-100 to 200°C (-148 to 392°F), probe dependent
Humidity Output Range	0 to 100% RH
Output Signals (analogue)	Scalable by user 0-1V, 0-5V, 0-10V, 0(4)-20mA
Digital Outputs (optional)	Ethernet (LAN, WLAN), USB, RS-485
Supply Voltage	10-28VDC
Circuit Type	2 x 2 wires
Min/Max Load	V-signal: ≥1k/V / mA-signal: ≤500
Data Logging	External, 2000 data point memory
Psychrometric Calculations	All selectable
