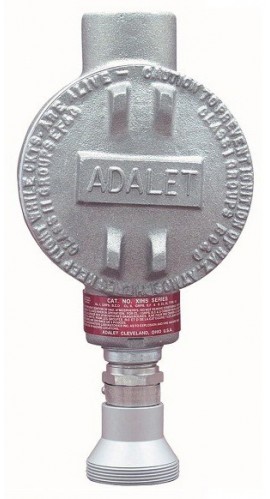

Interface with controllers and PLC/DCS systems, this toxic gas sensor/transmitter measures oxygen and is for outdoors or indoors. Come with a measuring range of 0 to 100% and a non-explosion-proof junction box.
Interface with controllers and PLC/DCS systems, this toxic gas sensor/transmitter measures oxygen and is for outdoors or indoors. Come with a measuring range of 0 to 100% and a non-explosion-proof junction box.
Applications
| Measuring Range | 0 to 100% volume |
| Accuracy (whichever is greater) | ±0.5% O2 |
| Lower Detectable Limit (LDL) | 0.1% volume |
| Response Time (T-90) | 20 seconds |
| Maximum Current Draw (24 VDC) | 25 mA maximum, 2 wires |
| Life Expectancy | 2 years normal service |
| Operating Environment Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Environment Humidity | 0 to 99% RH non condensing |
| Operating Voltage | 19 to 30 VDC |
| Output | 4 to 20 mA signal |
| Sensor | Plastic or aluminum |
| Measuring Range | 0 to 100% volume |
| Accuracy (whichever is greater) | ±0.5% O2 |
| Lower Detectable Limit (LDL) | 0.1% volume |
| Response Time (T-90) | 20 seconds |
| Maximum Current Draw (24 VDC) | 25 mA maximum, 2 wires |
| Life Expectancy | 2 years normal service |
| Operating Environment Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Environment Humidity | 0 to 99% RH non condensing |
| Operating Voltage | 19 to 30 VDC |
| Output | 4 to 20 mA signal |
| Sensor | Plastic or aluminum |
