RKI 72-5521RK-03 EAGLE Gas Monitor, LEL and ppm/O₂/CO/CO₂/PH₃

Model: 72-5521RK-03

Be the first to review this product

The monitor is designed for multi-gas detection, with up to 6 individual gases. It features a strong internal pump for quick response and recovery.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Portable Multi-Gas Detectors category for similar products.

Or let's do a search and help you find what you need:

RKI 72-5521RK-03 Offers

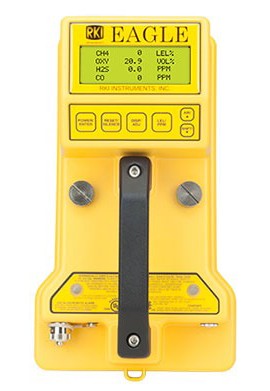

The 72-5521RK-XX EAGLE Gas Monitor is capable of detecting up to 6 different gases as a time, including ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 and methane or hydrocarbons in LEL and % volume ranges. The EAGLE has a strong internal pump with a low flow auto shut off and alarm, allowing for quick response and recovery from distant sampling locations. With its ergonomic design and large glove friendly buttons, the EAGLE offers easy access to controls such as auto-calibration, alarm silence, demand zero and peak hold. Each channel has 2 alarm levels plus TWA and STEL alarms for toxic channels.

Features

Simultaneous detection of up to 6 different gases
Over 400 gas monitoring configurations
Wide range of toxic gases
LEL/ppm hydrocarbon detection
Low flow pump shut off and alarm
Methane elimination switch for environmental use
Security adjustment lockout switch
Up to 30 hours of continuous operation
Alkaline or Ni-Cad capability
IR sensors available for CO2, LEL CH4 or HC, Volume CH4 or HC
Transformer testing version available
Data logging option
Auto calibration/single gas calibration
Dual hydrophobic filters
Ergonomic RFI/EMI/chemical/weather resistant enclosure
Intrinsically safe design, CSA (C/US) & UL classified
Complies with EPA Method 21
Data logging cannot be added to a 5 or 6 gas EAGLE, or an EAGLE with more than 2 toxic sensors; any sensor that is not an Oxygen or LEL (Catalytic) sensor is counted as a toxic sensor
Data logging cannot be added to an EAGLE which has the extra loud buzzer added to EAGLE
Methane Elimination Switch is not operable for instruments calibrated to methane
High Capacity Hydrophobic/Dust AcroPac filter can only be used in an EAGLE with LEL/O2/H2S/CO and no super-toxics, or an EAGLE that has super-toxic sensors but no sensors for LEL/O2/H2S/CO
Standard factory calibration of LEL/ppm ranges is to methane (calibration to hexane, isobutene or other gases is optional); for units provided with an external methane elimination switch, calibration is to hexane
Available CO2 ranges (Some EAGLE configurations do not support the 0 to 20% and 0 to 60% CO2 ranges): 0 to 5,000 ppm (-01 suffix), 0 to 10,000 ppm (-02 suffix), 0 to 5% (-03 suffix), 0 to 20% (-04 suffix) and 0 to 60% (-05 suffix)

RKI 72-5521RK-03 Specifications

Detected Gases	LEL and ppm/O₂/CO/CO₂/PH₃

Click here for complete specifications on the RKI 72-5521RK-03

What's included with the RKI 72-5521RK-03

EAGLE Gas Monitor
Alkaline Batteries
Hydrophobic Probe
Hose
Internal Hydrophobic Filter
Inlet Fitting
Teflon Hose
Shoulder Strap
