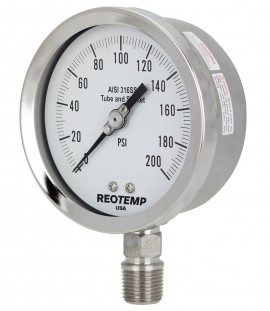

Ideal for industrial applications with all-welded stainless steel construction, this heavy-duty repairable stainless gauge has a twist-off bayonet ring for field repair and calibration services. In addition, it features a dial size of 4" (101.6 mm) and a pressured range of 0 to 200 psi.
Ideal for industrial applications with all-welded stainless steel construction, this heavy-duty repairable stainless gauge has a twist-off bayonet ring for field repair and calibration services. In addition, it features a dial size of 4" (101.6 mm) and a pressured range of 0 to 200 psi.
Features
Applications
| Pressure Gauge | 0 to 200 psi |
| Accuracy | 1%, ASME grade 1A (10 to 20K ; 2% upscale, 4% downscale) |
| Temperature Range Limit | Ambient: -40 to 150°F (-40 to 65.6°C) Process: -40 to 250°F (-40 to 121.1°C) |
| Lens | Tempered safety glass (standard) |
| Mount Type | Bottom |
| Connection | ½" NPT |
| Case | Fill: Dry Type: 304SS |
| Tube and Socket | 316SS |
| Dial Size | 4" (101.6 mm) |
| Weight | 1.3 lbs |
| Pressure Gauge | 0 to 200 psi |
| Accuracy | 1%, ASME grade 1A (10 to 20K ; 2% upscale, 4% downscale) |
| Temperature Range Limit | Ambient: -40 to 150°F (-40 to 65.6°C) Process: -40 to 250°F (-40 to 121.1°C) |
| Lens | Tempered safety glass (standard) |
| Mount Type | Bottom |
| Connection | ½" NPT |
| Case | Fill: Dry Type: 304SS |
| Tube and Socket | 316SS |
| Dial Size | 4" (101.6 mm) |
| Weight | 1.3 lbs |
