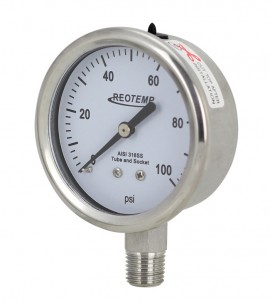

Image is for reference only, refer to product info for complete details.
Ideal for industrial applications, this stainless steel pressure gauge is resistant to corrosion from both environment and media. Glycerin-filled for severe service with a plastic lens and an attractive crimp ring design. In addition, it has a pressure range of 0 to 6000 psi.
Ideal for industrial applications, this stainless steel pressure gauge is resistant to corrosion from both environment and media. Glycerin-filled for severe service with a plastic lens and an attractive crimp ring design. In addition, it has a pressure range of 0 to 6000 psi.
Features
Applications
| Pressure Range | 0 to 6000 psi |
| Accuracy | 2 - 1.6 - 2%, ASME grade B+ |
| Ambient/Process Limits | -40/150°F (-40/65.56°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Case Type | 304SS, case with crimped ring |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Glycerin |
| Lens | Plastic |
| Other Materials | Case: 304SS Ring: 304SS Dial: White aluminum, black letters Case-to-Socket: Screw connection |
| Environmental Protection | NEMA 4X/IP65 |
| Dial Size | 2.5" (63.5 mm) |
| Dimensions | 3.5 x 1.2 x Ø2.68" (88.9 x 30.48 x Ø68.1 mm) |
| Weight | 0.4 lbs (181.44 g) |
