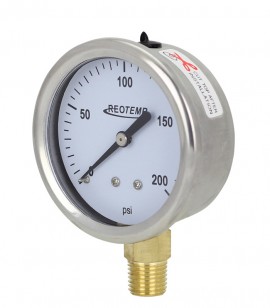

Image is for reference only, refer to product info for complete details.
Ideal for vibration and ambient corrosion concerns, this gauge features a stainless steel case and ring, corrosion resistance, is fillable for vibration or pulsation applications, and is for fluids compatible with copper alloys. In addition, this gauge has a bottom mount type, a 2.5" (63.5 mm) dial size and a 0 to 6000 psi range.
Ideal for vibration and ambient corrosion concerns, this gauge features a stainless steel case and ring, corrosion resistance, is fillable for vibration or pulsation applications, and is for fluids compatible with copper alloys. In addition, this gauge has a bottom mount type, a 2.5" (63.5 mm) dial size and a 0 to 6000 psi range.
Features
Applications
| Dial Size | 2.5" (63.5 mm) |
| Case Type | 304SS crimped ring |
| Tube and Socket | Copper alloy |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Range | 0 to 6000 psi |
| Case Fill | Glycerin |
| lens | Tempered Glass |
| Accuracy | 3 - 2 - 3%, ASME grade B |
| Ambient and Process Limits | -40°F (-40°F)/140°F (-40°F) |
| Maximum Working Pressure | Stable= 100% Momentary= 110% of scale |
| Dial Size | 2.5" (63.5 mm) |
| Case Type | 304SS crimped ring |
| Tube and Socket | Copper alloy |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Range | 0 to 6000 psi |
| Case Fill | Glycerin |
| lens | Tempered Glass |
| Accuracy | 3 - 2 - 3%, ASME grade B |
| Ambient and Process Limits | -40°F (-40°F)/140°F (-40°F) |
| Maximum Working Pressure | Stable= 100% Momentary= 110% of scale |
