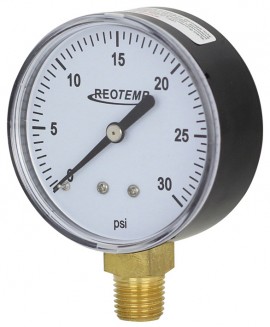

Image is for reference only, refer to product info for complete details.
Reliable and economical, this pressure gauge is ideal for applications where ambient or process corrosion is not of concern and for non-vibrating applications. In addition, this gauge features a standard black steel case with a snap-in lens, a dial size of 2.5" (63.5 mm), and a pressure range of 0 to 60 psi.
Reliable and economical, this pressure gauge is ideal for applications where ambient or process corrosion is not of concern and for non-vibrating applications. In addition, this gauge features a standard black steel case with a snap-in lens, a dial size of 2.5" (63.5 mm), and a pressure range of 0 to 60 psi.
Features
Applications
| Pressure Range | 0 to 60 psi |
| Accuracy | 3-2-3%, ASME Grade B |
| Ambient/Process Limits | -40/140°F |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Wetted Materials | Tube and socket: Copper alloy |
| Lens | Plastic snap-in |
| Other Materials | Case: Black painted steel Ring: Snap-in lens Dial: White aluminum, black letters Case-to-socket: Screw connection |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Dry |
| Dial Size | 2.5" (63.5 mm) |
| Dimensions | 3.3 x 1.14 x Ø2.48" (83.8 x 28.9 x Ø63 mm) |
| Weight | 0.25 lbs (113.4 g) |
| Pressure Range | 0 to 60 psi |
| Accuracy | 3-2-3%, ASME Grade B |
| Ambient/Process Limits | -40/140°F |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Wetted Materials | Tube and socket: Copper alloy |
| Lens | Plastic snap-in |
| Other Materials | Case: Black painted steel Ring: Snap-in lens Dial: White aluminum, black letters Case-to-socket: Screw connection |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Dry |
| Dial Size | 2.5" (63.5 mm) |
| Dimensions | 3.3 x 1.14 x Ø2.48" (83.8 x 28.9 x Ø63 mm) |
| Weight | 0.25 lbs (113.4 g) |
