4 image modes (infrared/visual camera/infrared overlay/picture in picture), choice of 6 color palettes.
4 image modes (infrared/visual camera/infrared overlay/picture in picture), choice of 6 color palettes.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

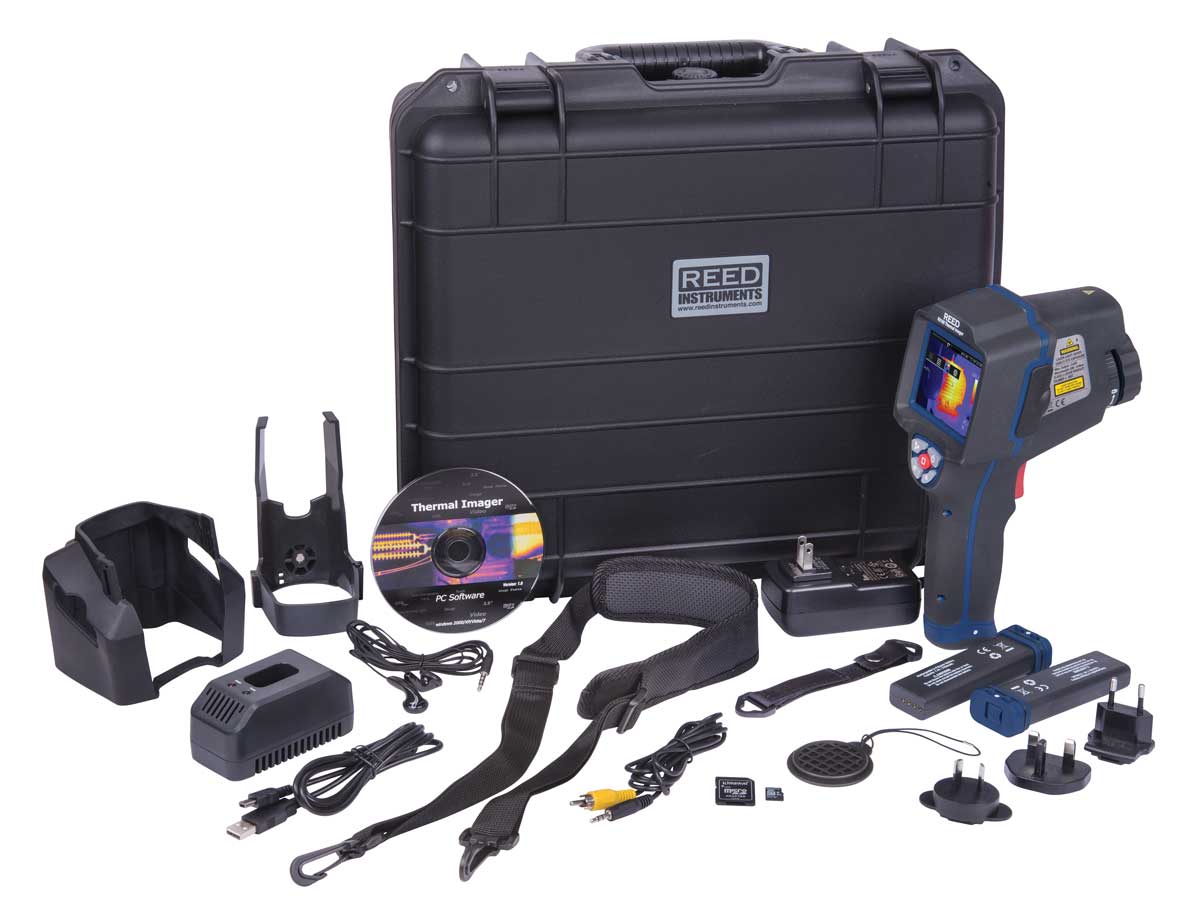

This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between -4 to 752°F (0 and 400°C). The R2100 is capable of displaying thermal and visual images on a 3.5" color TFT LCD touchscreen and has the ability to take infrared and visual photos and record video with audio (voice annotations).
Features
| Imaging and Optical | |
| Field of View (FOV) | 29.8 x 22.6° |
| Minimum Focus Distance | 0.2m (0.66') |
| Spatial Resolution | (IFOV) 3.33 mrad |
| Thermal Sensitivity (NETD) | <0.08°C (80mK) |
| Image Capture Frequency | 50Hz |
| Focus | Manual |
| Measurement | |
| Temperature Range | Low Range: -4 to 302°F (-20 to 150°C) High Range: 32 to 752°F (0 to 400°C) |
| Accuracy | ±3.6°F (2°C) or ±2% of reading |
| Resolution | 0.1 or 1°F/°C |
| Detector | |
| Detector Type | Uncooled microbolometer, Focal plane array (FPA) |
| Spectral Range | 8 to 14μm |
| IR Resolution | 160 x 120 (19,200 pixels) |
| Image Presentation | |
| Display | 3.5" color TFT touch screen |
| Image Modes | IR image, visual image, picture in picture |
| Picture in Picture | IR area on visual image or visual image area on IR |
| Color Palettes | 6 (Gray / Gray Inverse / Iron / Iron Inverse / Rainbow / Feather) |
| Measurement Analysis | |
| Spot Meter | 3 |
| Emissivity | Adjustable (0 to 1.00) |
| Line | 2 lines (horizontal and vertical) |
| Area | 3 boxes with max/min/avg |
| Automatic Hot/Cold Detection | Auto hot or cold spotmeter markers |
| Isotherm | Detect high/low temperature/interval |
| Measurement Corrections | Emissivity, ambient temperature, distance, relative humidity, offset temperature |
| General Specifications | |
| Zoom | 20x continuous, digital zoom |
| Digital Camera | Yes (640 x 480 resolution) |
| Image Format | JPEG on memory card >1000 pictures |
| Video Out | Composite (PAL and NTSC) |
| Video Format | MPEG-4, 640x480 @ 30 FPS on memory card >60 minutes |
| Video Camera and Annotations | Yes |
| Laser Indicator | Yes |
| LED Flashlight | Yes |
| External Memory | 4GB micro SD card |
| Auto Shut-off / Sleep Mode | Yes (user adjustable) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 7.4V rechargeable lithium battery |
| Battery Life | Approx. 4.5 hours |
| Charging System | In Camera or with AC Adapter |
| PC Connectivity | USB Cable |
| Software | Yes (Included) |
| Software OS Compatibility | Windows XP / 7 / 8 / 10 |
| Supported Languages | English, Chinese, French, German, Spanish |
| Laser Class | II |
| Product Certifications | CE, IP65, 6.6' (2m) drop test |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Operating/Storage Humidity Range | 10 to 90% |
| Dimensions | 9.6 x 4.1 x 6.3" (243 x 103 x 160mm) |
| Weight | 2.1lbs (920g) |
