This insulation tester has a double molded plastic housing and features a large easy-to-read dual display with backlight. It will test voltages of 250, 500 or 1000V.
This insulation tester has a double molded plastic housing and features a large easy-to-read dual display with backlight. It will test voltages of 250, 500 or 1000V.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

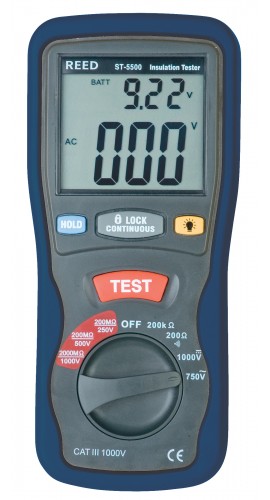

The REED ST-5500 has many features such as 250V, 500V or 1000V test voltage combinations, a large, easy-to-read dual display with backlight and and a durable double molded plastic housing making it stand up to the test of time. With its CAT III 1000V rating, this is the only insulation tester you need in your tool bag.
Features
| Test Voltages | 250V, 500V, 1000V |
| Insulation Resistance Range | 200MΩ, 2000MΩ |
| Insulation Resistance Accuracy | ±3.5% rdg. ±5 dgt. |
| Resistance Range | 200Ω, 2000Ω |
| Resistance Accuracy | ±1% rdg. ±2 dgt. |
| Voltage Range | 750VAC / 1000VDC |
| Voltage Accuracy | AC: ±1.2% rdg. ±10 dgt. DC: ±0.8% rdg. ±3 dgt. |
| Continuity Range | Beeps ≤40Ω |
| Test Current | ≤200mA |
| Power Supply | 6 x 1.5V AA batteries |
| Dimensions | 200 x 92 x 50mm |
| Weight | 700g |
| Test Voltages | 250V, 500V, 1000V |
| Insulation Resistance Range | 200MΩ, 2000MΩ |
| Insulation Resistance Accuracy | ±3.5% rdg. ±5 dgt. |
| Resistance Range | 200Ω, 2000Ω |
| Resistance Accuracy | ±1% rdg. ±2 dgt. |
| Voltage Range | 750VAC / 1000VDC |
| Voltage Accuracy | AC: ±1.2% rdg. ±10 dgt. DC: ±0.8% rdg. ±3 dgt. |
| Continuity Range | Beeps ≤40Ω |
| Test Current | ≤200mA |
| Power Supply | 6 x 1.5V AA batteries |
| Dimensions | 200 x 92 x 50mm |
| Weight | 700g |
