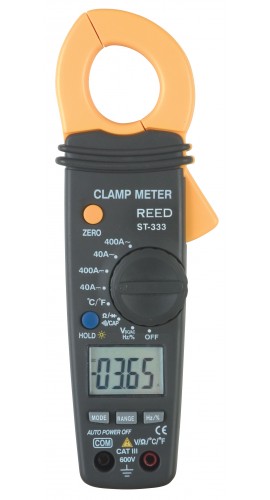

Reed ST-333 AC/DC Clamp Meter with Temperature

Model: ST-333

Reed ST-333 AC/DC Clamp Meter with Temperature

Model: ST-333

Features Backlight LCD 4000 count, Data Hold, Temperature measurement to 1832°F or 1000°C.

Features Backlight LCD 4000 count, Data Hold, Temperature measurement to 1832°F or 1000°C.

This product has been discontinued. Click here for the replacement model(s).


REED ST-333 Offers

EN 61010-1 CAT 600V

  • Temperature measurement to 1832°F (1000°C)
  • Complete with test leads, type K thermocouple wire probe, batteries and carrying case

Specifications

  • AC Current Range: 40.00, 400.0A
  • DC Current Range: 40.00, 400.0A
  • AC Voltage Range: 400.0mV, 4.000, 40.00, 400.0, 600V
  • DC Voltage Range: 4.000, 40.00, 400.0, 600V
  • Resistance Range: 400.0Ω, 4.000, 40.00, 400.0kΩ, 4.000, 40.00MΩ
  • Capacitance Range: 40.00, 400.0nF, 4.000, 40.00, 100.0µF
  • Frequency Range: 5.000, 50.00, 500.0Hz, 5.000, 50.00, 150.0kHz
  • Duty Cycle: 0.5 to 99.0%
  • Temperature Range: -58 to 1832°F (-50 to 1000°C)
  • Power Supply: 2 x "AAA" 1.5V batteries

What's included with the REED ST-333

  • Reed ST-333 AC/DC Clamp Meter with Temperature
  • Customer Reviews for the REED ST-333

    Ask a question about Reed ST-333 AC/DC Clamp Meter with Temperature

    REED ST-333 Offers

    EN 61010-1 CAT 600V

    • Temperature measurement to 1832°F (1000°C)
    • Complete with test leads, type K thermocouple wire probe, batteries and carrying case

    Specifications

    • AC Current Range: 40.00, 400.0A
    • DC Current Range: 40.00, 400.0A
    • AC Voltage Range: 400.0mV, 4.000, 40.00, 400.0, 600V
    • DC Voltage Range: 4.000, 40.00, 400.0, 600V
    • Resistance Range: 400.0Ω, 4.000, 40.00, 400.0kΩ, 4.000, 40.00MΩ
    • Capacitance Range: 40.00, 400.0nF, 4.000, 40.00, 100.0µF
    • Frequency Range: 5.000, 50.00, 500.0Hz, 5.000, 50.00, 150.0kHz
    • Duty Cycle: 0.5 to 99.0%
    • Temperature Range: -58 to 1832°F (-50 to 1000°C)
    • Power Supply: 2 x "AAA" 1.5V batteries

    What's included with the REED ST-333

  • Reed ST-333 AC/DC Clamp Meter with Temperature
