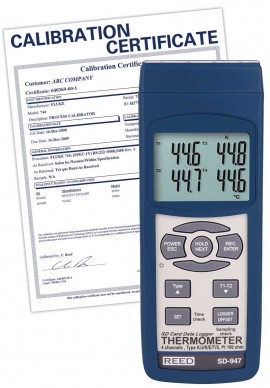

REED SD-947 Thermocouple/RTD Thermometer/Data Logger, 4-channel, includes Traceable Certificate

Model: SD-947-NIST | UPC: 800837003386

REED SD-947 Thermocouple/RTD Thermometer/Data Logger, 4-channel, includes Traceable Certificate

Model: SD-947-NIST | UPC: 800837003386

Displays up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J , R, S, E, T thermocouple and RTD probes. Real-time data logger with integral SD memory card. This product includes a Traceable Certificate with full Data and Uncertainties.

Displays up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J , R, S, E, T thermocouple and RTD probes. Real-time data logger with integral SD memory card. This product includes a Traceable Certificate with full Data and Uncertainties.

Sale Price $417.60 USD
Regular Price $464.00 USD
Availability 3 Days
Quantity

Recommended Accessories


REED SD-947-NIST Offers

This SD series data logging thermometer measures Type K, J, R, S, E, T and RTD and features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (up to 16Gb) a user can select a desired sampling rate and quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring and PC software that allows a user to tracking live measurements on up to 4 seperate channels.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Displays up to 4 separate measurements simultaneously
  • Accepts Type K, J , R, S, E, T thermocouple and RTD probes
  • Temperature differential (T1-T2), Max/Min and Data hold functions
  • User selectable °C, °F
  • Real-time data logger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Large, easy-to-read backlit LCD display
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED SD-947 Specifications

Measuring Range Type K T/C: -148 to 2372°F (-100 to 1300°C)
Type J T/C: -148 to 2102°F (-100 to 1150°C)
Type T T/C: -148 to 752°F (-100 to 400°C)
Type E T/C: -148 to 999.9°F (-100 to 900°C)
Type R T/C: 32 to 3092°F (0 to 1700°C)
Type S T/C: 32 to 2732°F (0 to 1500°C)
RTD: -327.9 to 1562°F (-199.99 to 850°C)
Accuracy Type K T/C: ± (0.4% + 1°F) / ± (0.4% + 0.5°C)
Type J T/C: ± (0.4% + 1°F) / ± (0.4% + 0.5°C)
Type T T/C: ± (0.4% + 1°F) / ± (0.4% + 0.5°C)
Type E T/C: ± (0.4% + 1°F) / ± (0.4% + 0.5°C)
Type R T/C: ± (0.5% + 2°F) /± (0.5% + 1°C)
Type S T/C: ± (0.5% + 2°F) /± (0.5% + 1°C)
RTD: ±(0.4% + 1.8°F) / ±(0.4% + 1°C)
Resolution 0.1 or 1°F/°C
Type 4-Channel, Thermocouple, 2-Channel RTD
Response Time 1x/sec
Display Quad Display, LCD
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Differential Measurement (T1-T2) Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes (AC)
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 7.0 x 2.7 x 1.9" (177 x 68 x 45mm)
Weight 1.1lbs (515g)
Click here for complete specifications on the REED SD-947-NIST

What's included with the REED SD-947-NIST

  • Thermocouple Thermometer/Data Logger
  • Traceable Certificate with full Data and Uncertainties
  • Batteries

Ideal Applications for the REED SD-947

  • Medical
  • Pharmaceutical
  • Environmental Monitoring
  • Industrial and Commercial Temperature Applications
  • R&D and Educational Establishments
  • Food Service

Click on a category to view a selection of compatible accessories with the REED SD-947 Thermocouple/RTD Thermometer/Data Logger, 4-channel,.

REED CA-05A Medium Soft Carrying Case CA-05A
Features a main instrument compartment and a side pouch for accessories.




REED USB-01 USB Cable USB-01
For use with the REED SD Series Dataloggers, GU-3001 and TQ-8800.




REED SW-U801-WIN Data Acquisition Software SW-U801-WIN
For use with REED SD Series Dataloggers, GU-3001 and TQ-8800.




REED AP-9VA-110V AC Adapter AP-9VA-110V
For use with REED SD Series Dataloggers and Scales.




REED SD-4GB SD Memory Card, 4GB SD-4GB
For use with the REED SD Series Dataloggers and R2100 Thermal Imaging Camera.




REED LS-109 Type K Surface Probe LS-109
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.




REED TP-01 Type K Beaded Wire Probe TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.




REED R1500 Tripod R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
