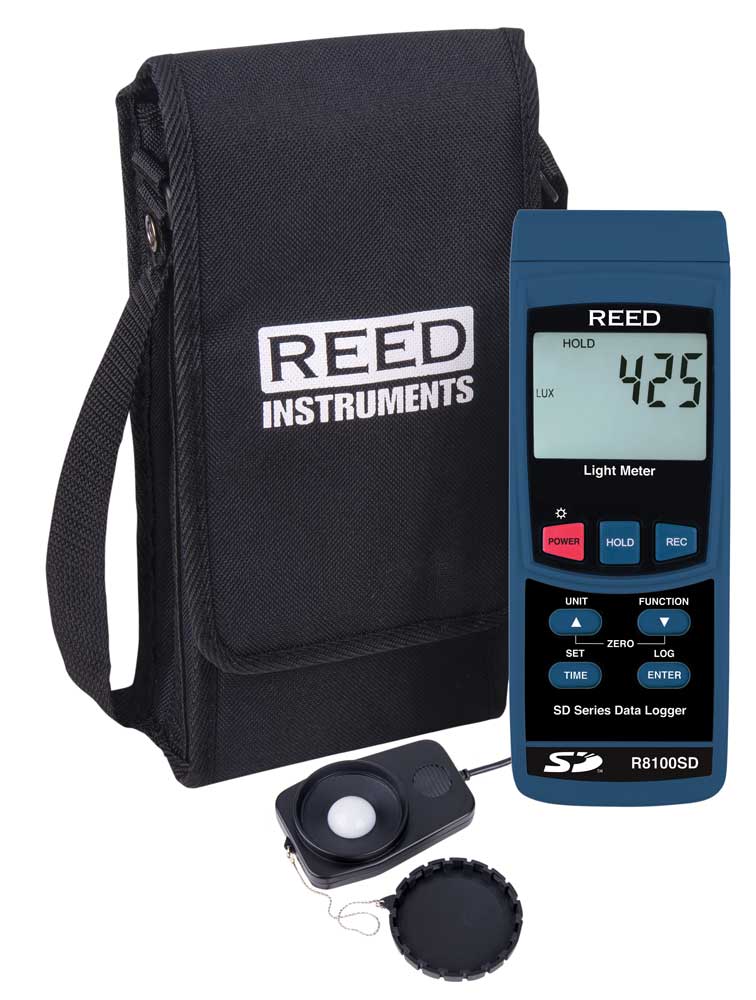

Real-time data logger with integrated SD memory card measures/records ambient light levels in Foot Candles or Lux and contact temperature with optional type J/K thermocouple probe. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Real-time data logger with integrated SD memory card measures/records ambient light levels in Foot Candles or Lux and contact temperature with optional type J/K thermocouple probe. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
The R8100SD has a wide measurement range up to 100,000 Lux (10,000 Foot-candles) and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| Measuring Ranges | Lux: 2,000, 20,000, 100,000 Fc: 200, 2,000, 10,000 Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C) Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Accuracy | Lux: ±(4% + 2 Lux) Fc: <2,000: ±(4% rdg.+ 2 Fc) 2,000-10,000: ±(4% rdg.+ 20 Fc) Temp: >-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) <-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | Lux: 1, 10, 100 Fc: 0.1, 1, 10 Temp: 0.1°F (0.1°C) |
| Response Time | <1 second |
| Sensor Type | Photo diode & color correction filter |
| Autoranging | Yes |
| Display | 5-digit LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Auto Zero | Yes |
| Overrange Indicator | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Battery Life | Sampling Time Dependent |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 7 x 2.7 x 1.9" (117 x 68 x 45mm) |
| Weight | 17.3oz (489g) |
Click on a category to view a selection of compatible accessories with the REED R8100SD-NIST Data Logging Light Meter,.
