REED R8070SD Data Logging Sound Level Meter

Model: R8070SD | UPC: 800837004895

Be the first to review this product

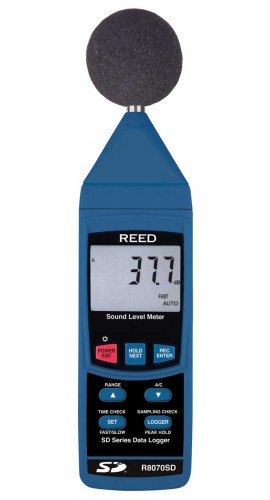

REED R8070SD Data Logging Sound Level Meter-

Downloads: datasheet manual

More REED Products

Ask an Expert

REED R8070SD Data Logging Sound Level Meter

Model: R8070SD | UPC: 800837004895

Be the first to review this product

Real time data logger with integrated SD memory card measures/records general sound levels and meets IEC 61672-1 Type 2 standards.

Your Price	$379.00 USD
Availability	5 Days74 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your R8070SD Data Logging Sound Level Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTISL1) for only $305.00 USD

Traceable Calibration Certificate for your R8070SD Data Logging Sound Level Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTISL1) for only $305.00 USD

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED RSD-ADP-EU AC Adapter, 220V

RSD-ADP-EU

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB

RSD-16GB

REED REED-WB Windshield Ball for Sound Level Meters

REED-WB

REED R8090 Sound Level Calibrator

R8090

REED R1500 Tripod

R1500

REED R8070SD Offers

This R8070SD has triple range measurement and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

High accuracy of ±1.0dB to 1kHz meets Type 2 standards
Triple range measurement (50dB dynamic range)
A & C frequency weighting
Fast & Slow time weighting
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Peak hold, Data hold and Min/Max hold
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.

REED R8070SD Specifications

Measuring Ranges	30 to 130dB Low: 30 to 80dB Med: 50 to 100dB High: 80 to 130dB Full: 30 to 130dB
Dynamic Range	50dB (in each range)
Accuracy	31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB
Resolution	0.1dB
Response Time	500ms
Frequency Range	31.5Hz to 8kHz
Frequency Weighting	A, C
Time Weighting	Fast/Slow (125ms and 1s)
Microphone	0.5" (12.7mm) electret condenser
Display	4-digit LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Alarm Indicators	Under and Over (visual on-screen)
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
AC Output Signal	0.5Vrms (full scale of selected range)
AC Output Impedance	600 ohms
AC Output Terminal	3.5mm Stereo Jack
Battery Life	Sampling Time Dependent
Product Certifications	CE, IEC 61672-1-2013, Class 2
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	Less than 85% RH
Dimensions	9.7 x 2.7 x 1.8" (245 x 68 x 45mm)
Weight	0.7lbs (320g)

Click here for complete specifications on the REED R8070SD

What's included with the REED R8070SD

Data Logging Sound Level Meter
Windshield Ball
Soft Carrying Case
Batteries

Assess sound levels with the REED R8070SD Data Logging Sound Level Meter

Concerned with noise levels in your environment? Get easy and accurate readings, allowing you to take the necessary steps to address any potential harmful situations. Sound level meters (also known as decibel and noise meters) are used every day by industrial maintenance teams as part of their preventative maintenance programs; health & safety departments who record acoustic levels during environmental impact studies and inspectors when auditing work environments to ensure safe conditions. The REED R8070SD data logs measured sound levels with an integrated SD memory card and meets IEC 61672-1 Type 2 standards.

Comparing the REED line of Sound Level Meters: Which one is best for you?

Sound level meters are used every day by industrial maintenance teams as part of their preventative maintenance programs; health & safety departments who record acoustic levels during environmental impact studies and inspectors when auditing work environments to ensure safe conditions.

Meet the SD Series Family of Real-Time Data Loggers

Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).

How To: Calibrate your Sound Level Meter

Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.

Ideal Applications for the REED R8070SD

Preventative maintenance
Industrial machinery/equipment
Construction sites
Ensuring safe working conditions
Public venues/concerts
Code enforcement
Traffic
Appliance noise testing
Long-term measurement
Recording of acoustic levels for environmental impact studies

datasheet for the REED R8070SD Data Logging Sound Level Meter manual for the REED R8070SD Data Logging Sound Level Meter

Click on a category to view a selection of compatible accessories with the REED R8070SD Data Logging Sound Level Meter.

Carrying Cases

REED CA-05A Medium Soft Carrying Case CA-05A

Features a main instrument compartment and a side pouch for accessories.

REED R8888 Medium Hard Carrying Case R8888

Professional grade, injection molded hard plastic case with customizable foam inserts.

Power Supplies

REED RSD-ADP-EU AC Adapter, 220V RSD-ADP-EU

For use with REED SD Series Data Loggers.

REED RSD-ADP-NA AC Adapter, 110V RSD-ADP-NA

For use with REED SD Series Data Loggers.

Memory Cards

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB RSD-16GB

For use with REED SD Series Data Loggers.

Windshield Balls

REED REED-WB Windshield Ball for Sound Level Meters REED-WB

This windshield ball is compatible with 1/2" microphones.

Sound Calibrators

REED R8090 Sound Level Calibrator R8090

This sound calibrator generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter.

Tripods

REED R1500 Tripod R1500

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
