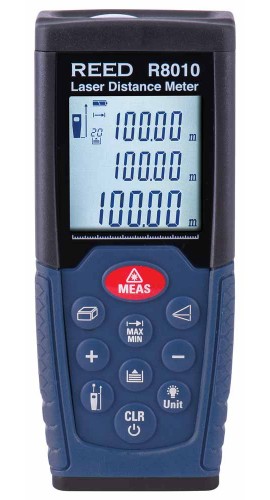

REED R8010 Laser Distance Meter, 328' (100m)

Model: R8010 | UPC: 800837004246

REED R8010 Laser Distance Meter, 328' (100m)

Model: R8010 | UPC: 800837004246

Dust and splash-proof (IP54), designed for one-handed operation.

Dust and splash-proof (IP54), designed for one-handed operation.

Your Price $129.00 USD
Availability 2 in Stock
Quantity

Add In-House Traceable Calibration to your R8010

Add In-House Traceable Calibration to your R8010


REED R8010 Offers

This laser distance meter measures up to 328 feet (100 meters) and features a multi-line LCD display and the ability to calculate area, volume and sum of lengths. The R8010 is capable of retaining maximum and minimum readings and up to 20 measurements in memory.

Features

  • Designed for one-handed operation
  • User selectable unit of measure (imperial/metric)
  • Laser target pointer
  • Reference point selection (front or rear of instrument)
  • Backlit multi-line LCD display
  • Calculates Area, Volume and Sum of Lengths
  • Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
  • Max/Min functions
  • Continuous measurement mode
  • Internal memory saves up to 20 readings
  • Dust and splash-proof (IP54)
  • Low battery indicator and auto shut off

REED R8010 Specifications

Measuring Range 1.92" to 328' (5cm to 100m)
Accuracy ±0.06" (1.5 mm)
Measuring Units Meters, Inches, Feet
Sensor Type Laser
Laser Type 630 to 670nm, <1mW
Display LCD (Multi-Line)
Backlit Display Yes
Start Point Selection Yes (Front/Back)
Reading Mode 2 (Single/Continuous)
Maximum and Minimum Functions Yes
Calculation Functions Addition, Subtraction, Area, Volume, Sum of Lengths, 2 Point Indirect (Pythagoras), 3 Point Indirect
Internal Memory Yes (Up to 20 Readings)
Response Time 2 secs
Auto Shut-Off Yes (After 3 mins)
Low Battery Indicator Yes
Power Supply 2 x AAA Batteries
Battery Life Up to 4,000 Measurements
Laser Class Class II
Product Certifications CE, RoHS, IP54
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range <95% RH
Dimensions 4.5 x 1.9 x 1.1" (110 x 46 x 28 mm)
Weight 3.5oz (100g)
Click here for complete specifications on the REED R8010

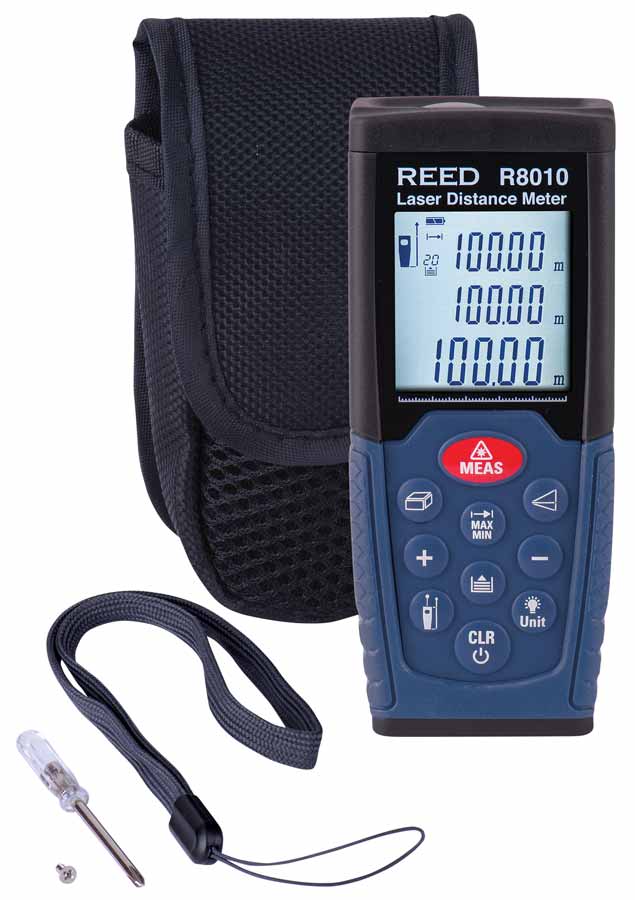

What's included with the REED R8010

  • Laser Distance Meter
  • Soft Carrying Case
  • Wrist Strap
  • Screwdriver
  • 2 x AAA Batteries

R8010 Laser Distance Meter

Ideal Applications for the REED R8010

  • Measuring conduit and wire lengths
  • Light Retrofitting Projects
  • Piping/exhausts/ventilation and equipment installation
  • Conduit layout and installation
  • Air ventilation and duct work positioning
  • Air volume calculations
  • Hot/cold water piping locations
  • Determining wire length and duct sizing
  • Floor plans
  • Network room layout
