Internal memory capable or storing up to 500 readings, user adjustable high/low alarms.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIUT1).
Internal memory capable or storing up to 500 readings, user adjustable high/low alarms.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIUT1).

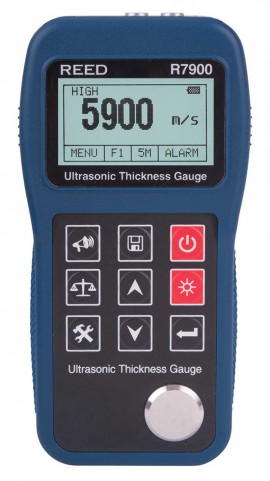

This ultrasonic thickness gauge has a backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements.
Features
| Measuring Range | 0.03 to 15.7" (0.65 to 400mm) |
| Accuracy | ±0.04mm (< 10mm) ±(0.1% rdg.+ 0.04mm) (< 100mm) ±(0.3% rdg.) (> 100mm) |
| Resolution | 0.01mm or 0.1mm (< 100mm) 0.1mm (>100mm) |
| Velocity Range | 1000 to 9999 m/s (0.039 to 0.394 in/µs) |
| Compatible Materials | Ultrasonic conductive materials (ie. metals, plastics, ceramics, composites, epoxies, glass) |
| Sampling Time | Less than 1 sec. |
| Display | 4-Digit, LCD |
| Backlit Display | Yes |
| Probe Length | 3' (36") |
| Internal Memory | Yes (up to 500 readings, 5 files up to 100 each) |
| Low Battery Indicator | Yes |
| Power Supply | 2 AA Batteries |
| Battery Life | Approx. 100 hours (Alkaline) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 80% |
| Dimensions | 5.9 x 2.9 x 1.3" (150 x 74 x 32mm) |
| Weight | 8.4oz (238g) |
Click on a category to view a selection of compatible accessories with the Rental – REED R7900 Ultrasonic Thickness Gauge, 15.7" (400mm).
| Measuring Range | 0.03 to 15.7" (0.65 to 400mm) |
| Accuracy | ±0.04mm (< 10mm) ±(0.1% rdg.+ 0.04mm) (< 100mm) ±(0.3% rdg.) (> 100mm) |
| Resolution | 0.01mm or 0.1mm (< 100mm) 0.1mm (>100mm) |
| Velocity Range | 1000 to 9999 m/s (0.039 to 0.394 in/µs) |
| Compatible Materials | Ultrasonic conductive materials (ie. metals, plastics, ceramics, composites, epoxies, glass) |
| Sampling Time | Less than 1 sec. |
| Display | 4-Digit, LCD |
| Backlit Display | Yes |
| Probe Length | 3' (36") |
| Internal Memory | Yes (up to 500 readings, 5 files up to 100 each) |
| Low Battery Indicator | Yes |
| Power Supply | 2 AA Batteries |
| Battery Life | Approx. 100 hours (Alkaline) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 80% |
| Dimensions | 5.9 x 2.9 x 1.3" (150 x 74 x 32mm) |
| Weight | 8.4oz (238g) |
Click on a category to view a selection of compatible accessories with the Rental – REED R7900 Ultrasonic Thickness Gauge, 15.7" (400mm).
