REED R7900 Ultrasonic Thickness Gauge

Model: R7900 | UPC: 800837001443

REED R7900 Ultrasonic Thickness Gauge

Model: R7900 | UPC: 800837001443

Internal memory capable or storing up to 500 readings with user alarm thickness limits.

Internal memory capable or storing up to 500 readings with user alarm thickness limits.

Your Price $795.00 USD
Availability 212 in Stock
Quantity

Add In-House Traceable Calibration to your R7900

Add In-House Traceable Calibration to your R7900


REED R7900 Offers

This ultrasonic thickness gauge has a backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements.

Features

  • Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
  • Easy-to-read backlit LCD display
  • User selectable unit of measure (in/mm)
  • Internal memory stores up to 500 measurements
  • Displays sound velocity at the touch of a button
  • Zero adjustment button
  • User adjustable High/Low alarms
  • Built-in two-point calibration function
  • Auto sleep, shut off and low battery indicator

REED R7900 Specifications

Measuring Range 0.03 to 15.7" (0.65 to 400mm)
Accuracy ±0.04mm (< 10mm)
±(0.1% rdg.+ 0.04mm) (< 100mm)
±(0.3% rdg.) (> 100mm)
Resolution 0.01mm or 0.1mm (< 100mm)
0.1mm (>100mm)
Velocity Range 1000 to 9999 m/s (0.039 to 0.394 in/µs)
Compatible Materials Ultrasonic conductive materials (ie. metals, plastics, ceramics, composites, epoxies, glass)
Sampling Time Less than 1 sec.
Display 4-Digit, LCD
Backlit Display Yes
Probe Length 3' (36")
Internal Memory Yes (up to 500 readings, 5 files up to 100 each)
Low Battery Indicator Yes
Power Supply 2 AA Batteries
Battery Life Approx. 100 hours (Alkaline)
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 20 to 80%
Dimensions 5.9 x 2.9 x 1.3" (150 x 74 x 32mm)
Weight 8.4oz (238g)
Click here for complete specifications on the REED R7900

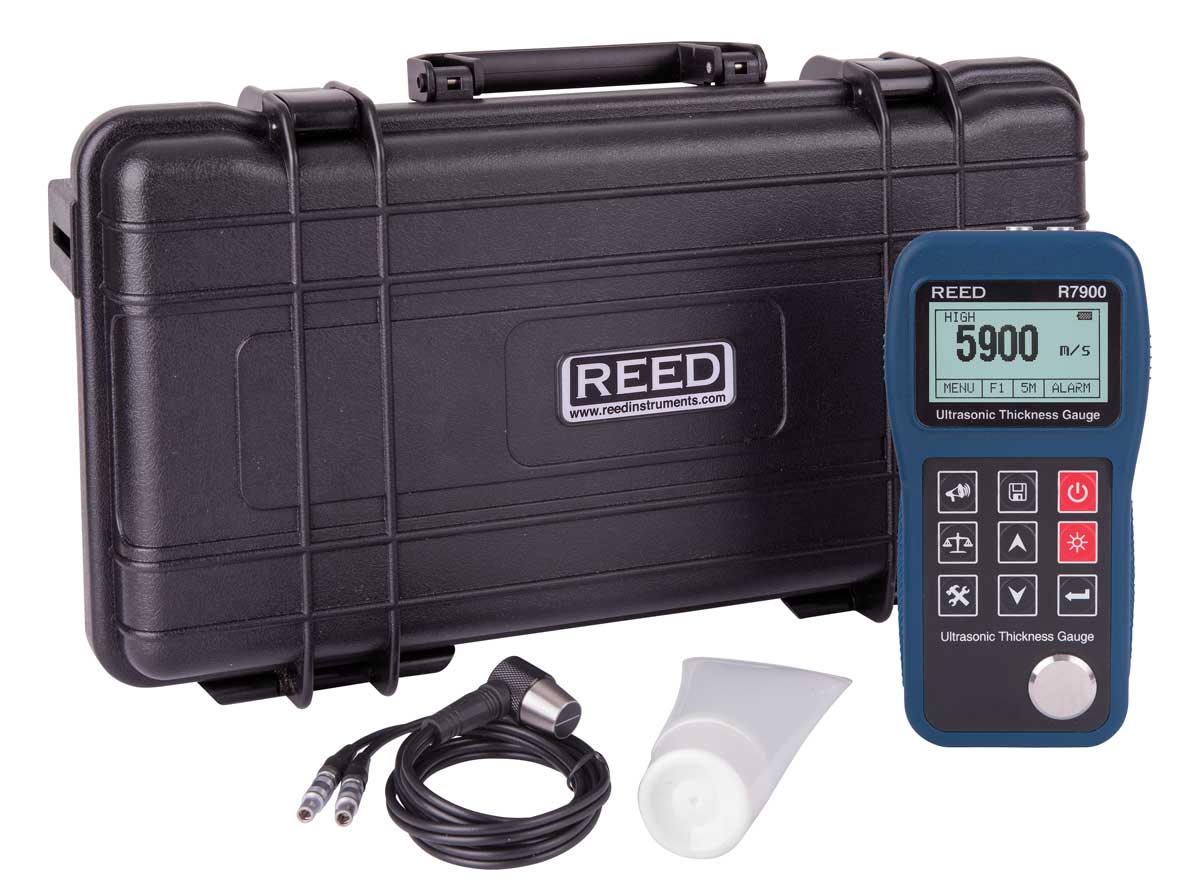

What's included with the REED R7900

  • Ultrasonic Thickness Gauge
  • Ultrasonic Couplant Gel
  • Probe
  • Hard Carrying Case
  • Batteries

R7900 Ultrasonic Thickness Gauge

Ideal Applications for the REED R7900

  • Monitoring and verifying pipes and pressure vessels
  • Industrial manufacturing

Click on a category to view a selection of compatible accessories with the REED R7900 Ultrasonic Thickness Gauge.

REED R7900-PROBE Replacement Probe R7900-PROBE
For use with the REED R7900 Ultrasonic Thickness Gauge.




REED CA-52A Small Soft Carrying Case CA-52A
Features a main instrument compartment and a side pouch for accessories.




REED R8888 Medium Hard Carrying Case R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.




REED R7950 Ultrasonic Couplant Gel R7950
This general purpose ultrasonic couplant gel holds on to horizontal and overhead surfaces. The R7950 is designed to work with ultrasonic thickness gauges and is ideal for iron, steel, aluminum and titanium surfaces.




REED R7950/12 Ultrasonic Couplant Gel, pack of 12 R7950/12
This general purpose ultrasonic couplant gel holds on to horizontal and overhead surfaces. The R7950 is designed to work with ultrasonic thickness gauges and is ideal for iron, steel, aluminum and titanium surfaces.
