REED R7700 Gloss Meter

Model: R7700

REED R7700 Gloss Meter

Model: R7700

Compact gloss meter allows for easy one-handed, 3-angle (20/ 60/ 85°) operation.

Compact gloss meter allows for easy one-handed, 3-angle (20/ 60/ 85°) operation.

Your Price $695.00 USD
Availability 10 in Stock
Quantity

REED R7700 Offers

This gloss meter is capable of measuring up to 200 gloss units (GU) from 3 different angles. The R7700 is designed to meet international gloss measurement standards (ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457), features a backlit LCD and internal memory capable of storing the last 254 measurements. The R7700 can be used in various applications including; automobile paint inspection, stone & tile manufacturing and paint and ink quality assurance processes.

Features

  • Compact design allows for one-handed operation
  • Multi-angle measurement (20/ 60/ 85°)
  • Backlit LCD display
  • Auto calibration
  • Internal memory stores last 254 data points
  • Built-in rechargeable battery
  • Designed to meet ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457 international standards

REED R7700 Specifications

Measuring Range 0.1 to 200 GU
Measuring Geometry 20° / 60° / 85°
Accuracy ±1.0 GU
Resolution 0.1 GU
Repeatability ±0.5 GU
Measuring Area 7x14mm
Display LCD
Backlit Display Yes
Auto Shut-off Yes (after 30 mins)
Low Battery Indicator Yes
Power Supply Rechargeable Lithium Battery
Internal Memory Yes (up to 254 datapoints)
Product Certifications CE / RoHS
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 0 to 85%
Dimensions 5.5 x 1.8 x 3" (140 x 45 x 75 mm)
Weight 10.76oz (305g)
Click here for complete specifications on the REED R7700

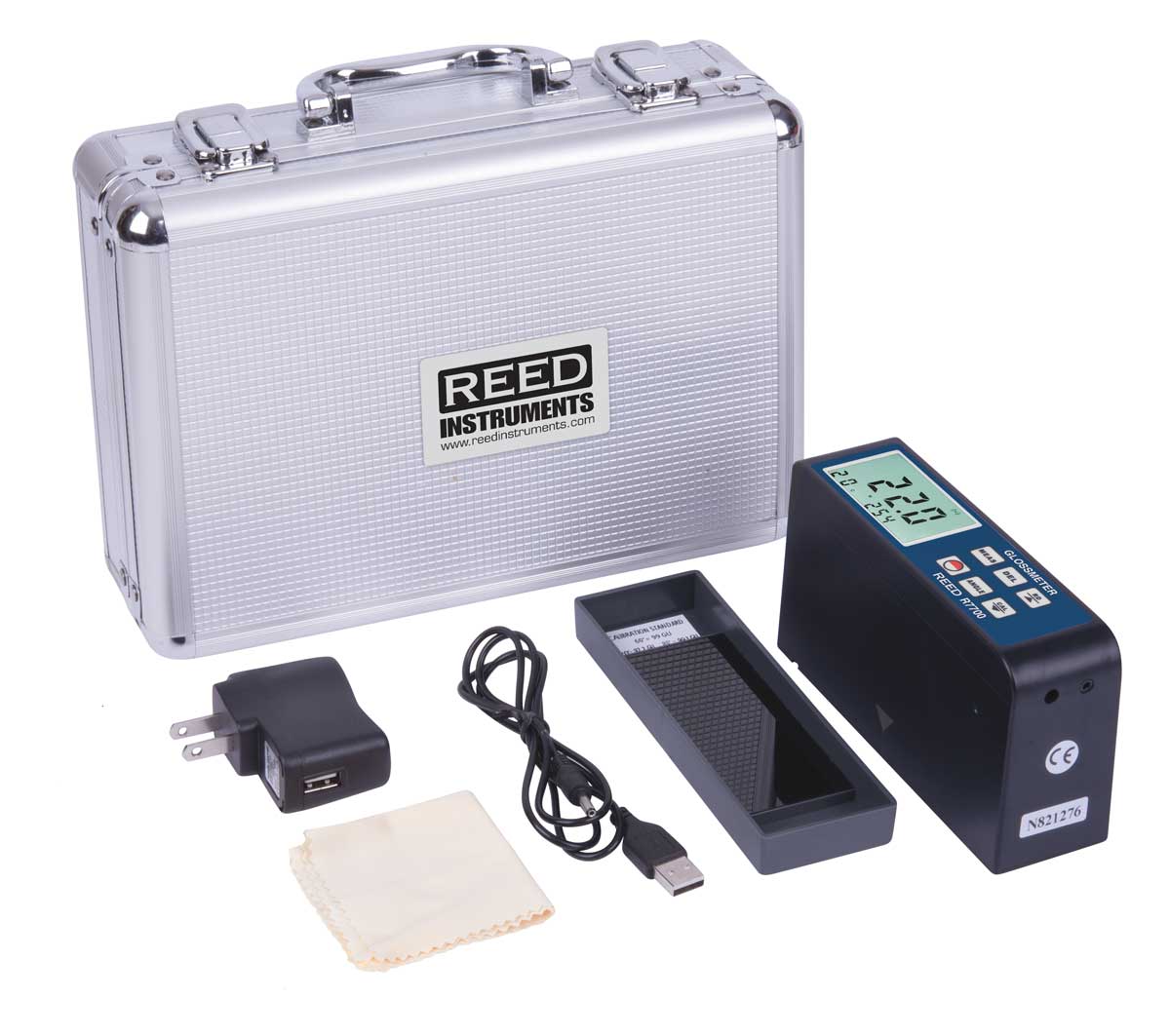

What's included with the REED R7700

  • R7700 Gloss Meter
  • AC Adapter
  • Calibration Standard
  • Cleaning Cloth
  • Hard Carrying Case

Ideal Applications for the REED R7700

  • Floor maintenance
  • Surface quality assurance
  • Stone and tile manufacturing
  • Paint and ink manufacturing
  • Automobile paint inspection
