The R7010 measures velocity, acceleration, and displacement, offering versatile vibration analysis with a 360° rotating color display and interchangeable probes for various applications.
The R7010 measures velocity, acceleration, and displacement, offering versatile vibration analysis with a 360° rotating color display and interchangeable probes for various applications.

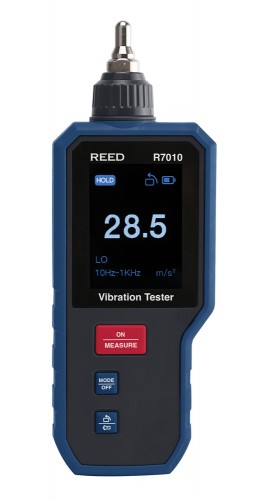

The R7010 Vibration Meter is designed to provide accurate vibration analysis by measuring velocity, acceleration, and displacement, making it ideal for a range of industrial applications. Its innovative 360° screen rotation feature allows users to view readings from any angle, ensuring convenience and flexibility during operation. This meter is also equipped with interchangeable short and long probes, allowing it to adapt to different measurement needs, making it suitable for a variety of surfaces and machinery.
Features
| Acceleration | |
| Measuring Range | 0.1 to 199.9 m/s2 |
| Resolution | 0.1m/s2 |
| Accuracy | ±(5% rdg. + 2 dgt) |
| Frequency Range | LO: 10Hz - 1kHz HI: 1kHz - 15kHz |
| Velocity | |
| Measuring Range | 0.1 to 199.9 mm/s |
| Resolution | 0.1 mm/s |
| Accuracy | ±(5% rdg. + 2 dgt) |
| Frequency Range | 10Hz - 1.5kHz |
| Displacement | |
| Measuring Range | 0.001 to 1.999mm |
| Resolution | 0.001mm |
| Accuracy | ±(10% rdg. + 2 dgt) |
| Frequency Range | 10Hz - 1kHz |
| General Specifications | |
| Response Time | 1 sec |
| Display | 2.4" TFT Color LCD |
| Backlit Display | Yes |
| Rotatable Screen | Yes |
| Data Hold | Yes |
| Auto Shut-off | Yes (after 5 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 1350mAh/3.7V rechargeable Li-ion battery |
| Battery Life | Approx. 12 hours |
| Charging System | In Meter |
| Charge Time | Approx. 3 hours |
| Product Certifications | CE, UKCA, ROHS |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-90% |
| Dimensions | 7.1 x 2.5 x 1.1" (180 x 64 x 28 mm) |
| Weight | 6.7oz (191g) |
Click on a category to view a selection of compatible accessories with the REED R7010 Vibration Meter.
