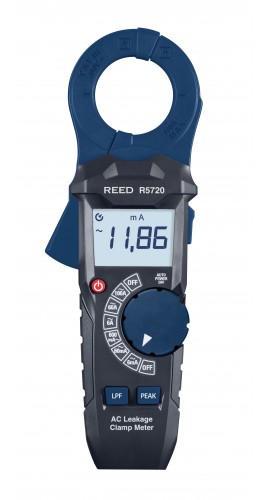

REED R5720 AC Leakage Clamp Meter

Model: R5720 | UPC: 800837007179

REED R5720 AC Leakage Clamp Meter

Model: R5720 | UPC: 800837007179

This AC leakage current tester features a large 6,000 count LCD display, low resolution and True RMS capability.

This AC leakage current tester features a large 6,000 count LCD display, low resolution and True RMS capability.

Your Price $289.00 USD
Availability 50 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5720 AC Leakage Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5720 AC Leakage Clamp Meter

REED R5720 Offers

This AC Leakage Clamp Meter is a professional-grade tool designed for precise AC current measurements, supporting ranges from 6 microamps to 100 amps. The R5720 offers high accuracy, low resolution and a low pass filter for measuring variable frequency equipment.

Features

  • Measures AC current from 6mA to 100A
  • 6000 count backlit LCD display
  • 1.26" (32mm) jaw size opening
  • True RMS AC measurements
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Cat. III 300V

REED R5720 Specifications

AC TRMS Current
Range 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA
Accuracy (50/60Hz) 100.0 A, 60.00 A: ±(1.5% rdg. +8 dgt.)
6.000 A, 600.0 mA, 60.00 mA: ±(1.0% rdg. +5 dgt.)
6.000 mA: ±(1.0% rdg. +8 dgt.)
Accuracy (>60Hz<1kHz) 100.0 A: ±(3.5% rdg. +8 dgt.)
60.00 A: ±(3.0% rdg. +8 dgt.)
6.000 A, 600.0 mA, 60.00 mA: ±(3.0% rdg. +5 dgt.)
6.000 mA: ±(3.0% rdg. +8 dgt.)
Resolution 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA
AC TRMS Current with Low Pass Filter (LPF)
Range 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA
Accuracy (50/60Hz) 100.0 A: ±(2.0% rdg. +8 dgt.)
60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA: ±(1.5% rdg. +8 dgt.)
Resolution 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA
General Specifications
AC Frequency 50 Hz to 1 kHz
Range Selection Manual
Over Range Indication Yes ("OL")
True RMS Yes
Low Pass Filter (LPF) Yes
Display 6,000 count LCD display
Backlit Display Yes
Display Hold Yes
Peak Max/Min Yes
Integrated Flashlight Yes
Auto Shut-Off Yes (after 15 mins)
Power Supply 3 x AAA Batteries
Low Battery Indicator Yes
Jaw Opening 1.26" (32 mm)
Overvoltage Category CAT. III 300V
Product Certifications CE
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 9.1 x 3.0 x 1.5" (232 x 77 x 39 mm)
Weight 9.6 oz (271 g)
Click here for complete specifications on the REED R5720

What's included with the REED R5720

  • Carrying Case
  • Batteries

Ideal Applications for the REED R5720

  • Measuring leakage current in electrical circuits and systems

Ask a question about REED R5720 AC Leakage Clamp Meter

Customer Reviews for the REED R5720

REED R5720 Offers

This AC Leakage Clamp Meter is a professional-grade tool designed for precise AC current measurements, supporting ranges from 6 microamps to 100 amps. The R5720 offers high accuracy, low resolution and a low pass filter for measuring variable frequency equipment.

Features

  • Measures AC current from 6mA to 100A
  • 6000 count backlit LCD display
  • 1.26" (32mm) jaw size opening
  • True RMS AC measurements
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Cat. III 300V

REED R5720 Specifications

AC TRMS Current
Range 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA
Accuracy (50/60Hz) 100.0 A, 60.00 A: ±(1.5% rdg. +8 dgt.)
6.000 A, 600.0 mA, 60.00 mA: ±(1.0% rdg. +5 dgt.)
6.000 mA: ±(1.0% rdg. +8 dgt.)
Accuracy (>60Hz<1kHz) 100.0 A: ±(3.5% rdg. +8 dgt.)
60.00 A: ±(3.0% rdg. +8 dgt.)
6.000 A, 600.0 mA, 60.00 mA: ±(3.0% rdg. +5 dgt.)
6.000 mA: ±(3.0% rdg. +8 dgt.)
Resolution 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA
AC TRMS Current with Low Pass Filter (LPF)
Range 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA
Accuracy (50/60Hz) 100.0 A: ±(2.0% rdg. +8 dgt.)
60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA: ±(1.5% rdg. +8 dgt.)
Resolution 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA
General Specifications
AC Frequency 50 Hz to 1 kHz
Range Selection Manual
Over Range Indication Yes ("OL")
True RMS Yes
Low Pass Filter (LPF) Yes
Display 6,000 count LCD display
Backlit Display Yes
Display Hold Yes
Peak Max/Min Yes
Integrated Flashlight Yes
Auto Shut-Off Yes (after 15 mins)
Power Supply 3 x AAA Batteries
Low Battery Indicator Yes
Jaw Opening 1.26" (32 mm)
Overvoltage Category CAT. III 300V
Product Certifications CE
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 9.1 x 3.0 x 1.5" (232 x 77 x 39 mm)
Weight 9.6 oz (271 g)
Click here for complete specifications on the REED R5720

What's included with the REED R5720

  • Carrying Case
  • Batteries

Ideal Applications for the REED R5720

  • Measuring leakage current in electrical circuits and systems

Ask a question about REED R5720 AC Leakage Clamp Meter

Customer Reviews for the REED R5720
