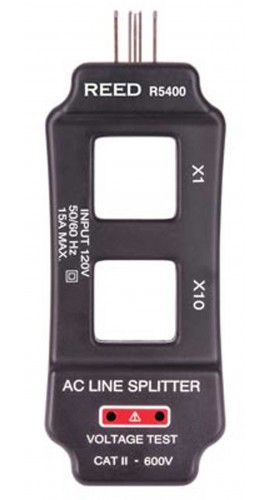

REED R5400 Line Splitter

Model: R5400 | UPC: 800837000125

REED R5400 Line Splitter

Model: R5400 | UPC: 800837000125

Provides safe measurements of current without the need to separate conductors.

Provides safe measurements of current without the need to separate conductors.

Your Price $14.00 USD
Availability 5 in Stock
Quantity

Recommended Accessories


REED R5400 Offers

This AC line splitter enables a clamp meter user to measure AC current on a 2-wire or 3-wire power cord to 15A.

Features

  • Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
  • Fits clamp jaw size 0.75" (19mm) and above
  • Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
  • Two measurement sensitivity positions (1X and 10X)
  • Voltage check function
  • Cat. II 600V safety rating

REED R5400 Specifications

Voltage 120V
Frequency Range 50 to 60Hz
Current Max 15A
Wire Compatibility 2-wire or 3-wire
Overvoltage Category CAT. II 600V
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity 0 to 85%
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 5.3 x 2  x 1" (133 x 51 x 25mm)
Weight 5.8oz (165g)
Click here for complete specifications on the REED R5400

What's included with the REED R5400

  • REED R5400 Line Splitter
  • Ideal Applications for the REED R5400

    Testing current on 110V receptacle.

    Click on a category to view a selection of compatible accessories with the REED R5400 Line Splitter.

    REED CA-52A Small Soft Carrying Case CA-52A
    Features a main instrument compartment and a side pouch for accessories.
