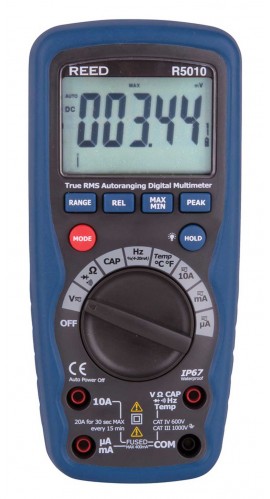

REED R5010 True RMS Digital Multimeter

Model: R5010 | UPC: 800837001269

REED R5010 True RMS Digital Multimeter

Model: R5010 | UPC: 800837001269

True RMS waterproof multimeter with 40,000 count backlit LCD display.

True RMS waterproof multimeter with 40,000 count backlit LCD display.

Your Price $149.00 USD
Availability 98 in Stock
Quantity

Add In-House Traceable Calibration to your R5010

Add In-House Traceable Calibration to your R5010


REED R5010 Offers

This True RMS autoranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph.

Features

  • True RMS measures frequency, resistance, capacitance and temperature
  • Diode check and continuity functions
  • Backlit LCD readout with analog bar graph
  • 4-20 mA process loop measurements with % readout
  • Data hold, Max/Min and Peak capture mode
  • IP67 dust and waterproof
  • Cat. IV 600V, Cat. III 1000V safety rating

REED R5010 Specifications

AC/DC Voltage
Range AC: 400mV, 4, 40, 400, 1000V
DC: 400mV, 4, 40, 400, 1000V
Accuracy AC: 400mV ±(1.0% rdg. + 5 dgt.)
4, 40, 400, 1000V ±(1.0% rdg. + 3 dgt.)
DC: 400mV/4,40,400V ±(0.06% rdg. + 2 dgt.)
1000V ±(0.1% rdg. + 5 dgt.)
Resolution AC: 0.1mV, 0.001, 0.01, 1V
DC: 0.01mV, 0.0001, 0.01, 0.1V
AC/DC Current
Range 400, 4000µA, 40, 400mA, 10A
Accuracy AC: ±(1.5% rdg. + 3 dgt.)
DC: ±(1.0% rdg. + 3 dgt.)
Resolution AC: 0.1, 1µA, 0.01,0.1mA, 0.01A
DC: 0.01, 0.1µA, 0.001,0.01mA, 0.001A
Resistance
Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy 400Ω: ±(0.3% rdg. + 9 dgt.)
4, 40, 400kΩ, 4MΩ: ±(0.3% rdg. + 4 dgt.)
40MΩ: ±(2.0% rdg. + 10 dgt.)
Resolution 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.001MΩ
Capacitance
Range 40, 400nF, 4, 40, 400, 4000µF, 40mF
Accuracy 40, 400nF: ±(3.5% rdg. + 40 dgt.)
4, 40, 400µF: ±(3.5% rdg. + 10 dgt.)
4000µF, 40mF: ±(5% rdg. + 10 dgt.)
Resolution 0.001, 0.01nF, 0.0001, 0.001, 0.01, 0.1µF, 0.001mF
Frequency
Range 40, 400Hz, 4, 40, 400kHz, 4, 40, 100MHz
Accuracy ±(0.1% rdg. + 1 dgt.)
Resolution 0.00, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001, 0.01MHz
Temperature
Range -58 to 1832°F (-50 to 1000°C)
Accuracy ±(1.0% rdg. + 4.5°F)
±(1.0% rdg. + 2.5°C)
Resolution 1°F, 1°C
4-20mA%
Range -25 to 125%
Accuracy ±(50 dgt.)
Resolution 0.01%
General Specifications
Range Selection Autoranging/Manual
True RMS Yes
Display 40,000 count LCD display
Display Hold Yes
Max/Min Yes
Peak Hold Yes
Relative Mode Yes
Diode Test Yes
Backlit Display Yes
Digital Analog Bargraph Yes
Continuity Check Audible signal if resistance ≤35Ω
Duty Cycle Yes (0.1 - 99.9%)
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply 9V Battery
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Overvoltage Category CAT. IV 600V, CAT. III 1000V
Product Certifications CE, IP67, Drop Tested (2M)
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.4 x 3.2 x 2.0" (187 x 81 x 50mm)
Weight 12oz (342g)
Click here for complete specifications on the REED R5010

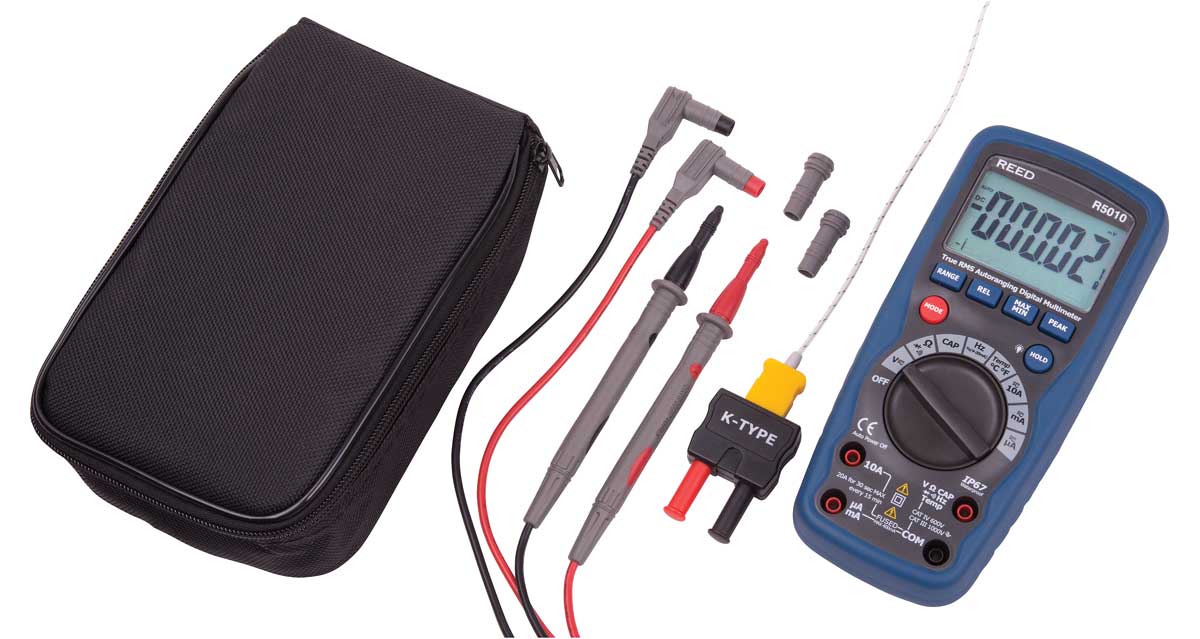

What's included with the REED R5010

  • TRMS AC/DC Multimeter with Temperature
  • Temperature Input Adapter
  • Thermocouple Wire Probe (Type K)
  • Test Leads
  • Battery
  • Weatherproof plugs
  • Carrying Case

Ideal Applications for the REED R5010

  • Testing batteries
  • Testing household wiring
  • Testing electric motors
  • Testing power supplies

Click on a category to view a selection of compatible accessories with the REED R5010 True RMS Digital Multimeter.

REED R2990 Thermocouple Adapter R2990
This adapter converts any Type-K thermocouple temperature probe with a mini-connector to dual shrouded banana plug inputs.




REED F-10A/1000V Replacement Fuse F-10A/1000V
For use with the REED R5010 Digital Multimeter.




REED F-500mA/1000V Replacement Fuse F-500mA/1000V
For use with the REED R5010 Digital Multimeter.




REED R1020 Fused Test Lead Set R1020
Ergonomic comfort grip.




REED R1000 Safety Test Lead Set R1000
Right angle and straight end flexible leads with shrouded banana plugs.




REED CP-09 AC Current Adapter, 200A CP-09
Converts a multimeter into AC clamp meter.




REED TP-01 Type K Beaded Wire Probe TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.




REED R2920 Type K Surface Probe R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.




REED CA-05A Medium Soft Carrying Case CA-05A
Features a main instrument compartment and a side pouch for accessories.
