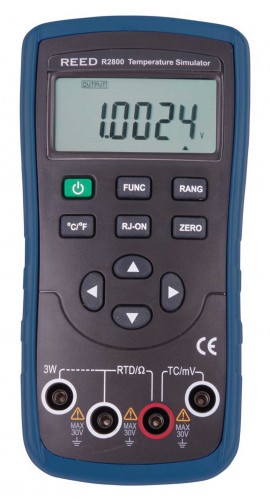

REED R2800 Temperature Simulator

Model: R2800 | UPC: 800837001139

Be the first to review this product

This Temperature Simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 5 RTDs. The R2800 features internal cold junction compensation, a basic accuracy of 0.05% and an easy-to-read LCD display.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R2815 Temperature Calibrator

Model: R2815

Sources and measures 11 thermocouple types and 5 RTD types and features a large, easy-to-read display.

Learn More

Recommended Accessories

REED R2990 Thermocouple Adapter

R2990

REED R2920 Type K Surface Probe

R2920

REED R1020 Fused Test Lead Set

R1020

REED R1000 Safety Test Lead Set

R1000

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2800 Offers

This temperature simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 5 RTDs. The R2800 features internal cold junction compensation, basic accuracy of 0.05% and an easy-to-read LCD display.

Features

Source 8 thermocouple types, including R, S, B, E, K, J, T, N; and 5 RTD types, including Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu50; plus volts and ohms

Basic accuracy of 0.05%
Internal cold junction compensation
Easy-to-read 6-digit LCD display
Zero adjustment button
User selectable unit of measure (°F/°C)
Low battery indicator and auto shut off

Features

Source 8 thermocouple types, including R, S, B, E, K, J, T, N; and 5 RTD types, including Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu50; plus volts and ohms
Basic accuracy of 0.05%
Internal cold junction compensation
Easy-to-read 6-digit LCD display
Zero adjustment button
User selectable unit of measure (°F/°C)
Low battery indicator and auto shut off

REED R2800 Specifications

Output	Range	Output Range	Resolution	Accuracy
DCV	100mV	-10 to 110mV	0.01mV	0.05% rdg. +30mV
1000mV	-100 to 1100mV	0.1mV	0.05% rdg. +0.3mV
OHM	400Ω	0.0 to 400.0Ω	0.1Ω	0.05% rdg. +0.2Ω
400Ω	0 to 4000Ω	1Ω	0.05% rdg. +2Ω
TC	R	-40 to 1760°C	1°C	±0.05% rdg. +3°C (≤100°C); ±0.05% rdg. +2°C (>100°C)
S	-20 to 1760°C	1°C		±0.05% rdg. +3°C (≤100°C); ±0.05% rdg. +2°C (>100°C)
B	400 to 1800°C	1°C	±0.05% rdg. +3°C (400 to 600°C); ±0.05% rdg. +2°C (>600°C)
E	-200 to 1000°C	0.1°C	±0.05% rdg. +2°C (≤-100°C); ±0.05% rdg. +1°C (>-100°C)
K	-200 to 1370°C	0.1°C
J	-200 to 1200°C	0.1°C
T	-200 à 400°C	0.1°C
N	-200 to 1300°C	0.1°C
RTD	Cu10	-10 to 250°C	0.1°C	±0.05% rdg. +0.6°C
Cu50	-50 to 150°C	0.1°C		±0.05% rdg. +0.6°C
Pt10 385	-200 to 850°C	0.1°C	±0.05% rdg. +0.6°C
Pt100 385	-200 to 850°C	0.1°C	±0.05% rdg. +0.6°C
Pt200 385	-200 to 630°C	0.1°C	±0.05% rdg. +0.6°C
Pt500 385	-200 to 630°C	0.1°C
Pt1000 385	-200 to 630°C	0.1°C

Display	6-Digit LCD
Zero Adjustment Button	Yes
Kick Stand	Yes
Power Supply	2 "AA" Batteries
Cold Junction Compensation	Yes
Auto Shut Off	Yes (after 15 mins/off)
Low Battery Indicator	Yes
Replaceable Test Leads	Yes
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity Range	0 to 85%
Storage Temperature	14 to 122°F (-10 to
Dimensions	7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Weight	8.2oz (500g)

Click here for complete specifications on the REED R2800

What's included with the REED R2800

Temperature simulator
Test leads
Alligator clips
Thermocouple adapter
Protective holster
2 x "AA" Batteries

Temperature simulator
Test leads
Alligator clips
Thermocouple adapter
Protective holster
2 x "AA" Batteries

Ideal Applications for the REED R2800

This temperature simulator can be used to simulate temperature for the verification and calibration of temperature instruments including thermocouple and RTD thermometers.
