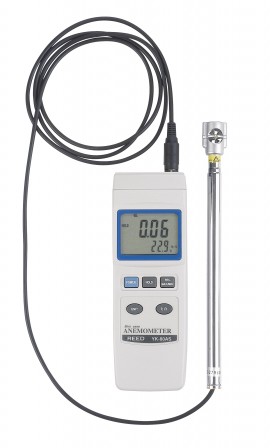

REED YK-80AS Mini-Vane Thermo-Anemometer

Model: YK-80AS

Be the first to review this product

This mini vane thermo-anemometer easily accesses restricted and hard to reach areas. Its temperature range is 32 to 176°F (0 to 80°C).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R4500SD Data Logging Hot Wire Thermo-Anemometer

Model: R4500SD

Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

Learn More

Recommended Accessories

REED R1500 Tripod

R1500

REED YK-80AS Offers

Features

Mini-vane anemometer permits access to restricted areas
Dual display indicates m/s, ft/min, km/h, knots, mph and °C/°F
13mm diameter metal mini-vane and telescopic probe to 600mm
RS232 output
Data hold, Record (Max/Min)
Auto shut off

REED YK-80AS Specifications

Air Velocity Range	0.8 to 12.0 m/s 2.8 to 43.2 km/h 1.8 to 26.8 mph 160 to 2358 ft/m 0.8 to 23.3 knots
Resolution	0.1 m/s, 0.1 km/h, 0.1 mph, 1ft/m, 0.1 knot
Accuracy	±(2% rdg. + 0.2 m/s, km/h, mph, ft/m, knot)
Temperature Range	32 to 176°F (0 to 80°C)
Resolution	0.1°F (0.1°C)
Accuracy	±1.5°F (±0.8°C)
Power Supply	1 x 9V battery
Sensor Diameter	ø 13mm dia.
Dimensions	8 x 2.7 x 1.2" (200 x 68 x 30mm)
Weight	7.75 oz (220g)

Click here for complete specifications on the REED YK-80AS

What's included with the REED YK-80AS

YK-80AS Mini Vane Thermo-Anemometer
Hard Carrying Case
Battery

datasheet for the REED YK-80AS Mini-Vane Thermo-Anemometer

Click on a category to view a selection of compatible accessories with the REED YK-80AS Mini-Vane Thermo-Anemometer.

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
