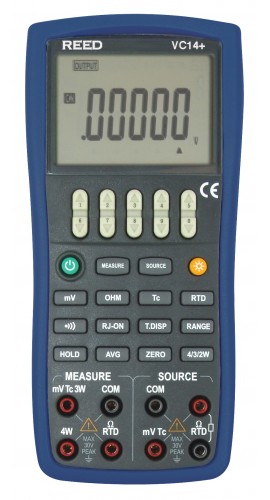

This Temperature Calibrator features automatic cold-end temperature offset and user-selectable 2-wire/3-wire/4-wire connections.
This Temperature Calibrator features automatic cold-end temperature offset and user-selectable 2-wire/3-wire/4-wire connections.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
| DC Voltage Output | |
| Range | 10mV; 1V |
| Output Range | -10.000 to 110.000mV; 0.000 to 1.1000V |
| Resolution | 1µV; 10µV |
| Accuracy | ±0.02% reading + 0.01% range |
| Resistance Output | |
| Range | 400Ω, 4kΩ |
| Output Range | 0.00 to 400.00Ω; 0.0000 to 4.0000kΩ |
| Resolution | 0.01Ω, 0.1Ω |
| Accuracy | ±0.02% reading + 0.02% range |
| DC Voltage Measurement | |
| Range | 50mV, 500mV |
| Output Range | -5.000 to 55.000mV; -50.00 to 550.00mV |
| Resolution | 1µV, 10µV |
| Accuracy | ±0.02% reading + 0.01% range |
| Resistance Measurement | |
| Range | 500Ω, 5kΩ |
| Output Range | 0.00 to 550.00Ω; 0.0000 to 5.5000kΩ |
| Resolution | 0.01Ω, 0.1Ω |
| Accuracy | ±0.05% reading + 0.02% range |
| Continuity Range | 500Ω; beeper sounds at ≤50Ω |
| General Specifications | |
| Power Supply | 4 x "AAA" alkaline batteries |
| Dimensions | 200 x 100 x 40mm w/ holster |
| Weight | 550g w/ holster |
| DC Voltage Output | |
| Range | 10mV; 1V |
| Output Range | -10.000 to 110.000mV; 0.000 to 1.1000V |
| Resolution | 1µV; 10µV |
| Accuracy | ±0.02% reading + 0.01% range |
| Resistance Output | |
| Range | 400Ω, 4kΩ |
| Output Range | 0.00 to 400.00Ω; 0.0000 to 4.0000kΩ |
| Resolution | 0.01Ω, 0.1Ω |
| Accuracy | ±0.02% reading + 0.02% range |
| DC Voltage Measurement | |
| Range | 50mV, 500mV |
| Output Range | -5.000 to 55.000mV; -50.00 to 550.00mV |
| Resolution | 1µV, 10µV |
| Accuracy | ±0.02% reading + 0.01% range |
| Resistance Measurement | |
| Range | 500Ω, 5kΩ |
| Output Range | 0.00 to 550.00Ω; 0.0000 to 5.5000kΩ |
| Resolution | 0.01Ω, 0.1Ω |
| Accuracy | ±0.05% reading + 0.02% range |
| Continuity Range | 500Ω; beeper sounds at ≤50Ω |
| General Specifications | |
| Power Supply | 4 x "AAA" alkaline batteries |
| Dimensions | 200 x 100 x 40mm w/ holster |
| Weight | 550g w/ holster |
