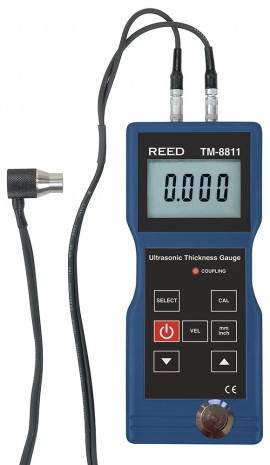

REED TM-8811 Ultrasonic Thickness Gauge

Model: TM-8811 | UPC: 800837002266

REED TM-8811 Ultrasonic Thickness Gauge

Model: TM-8811 | UPC: 800837002266

Quick responding and high accuracy with LCD display.

Quick responding and high accuracy with LCD display.

Your Price $439.00 USD
Availability 465 in Stock
Quantity

Add In-House Traceable Calibration to your TM-8811

Add In-House Traceable Calibration to your TM-8811


REED TM-8811 Offers

This ultrasonic thickness gauge has an easy-to-read LCD display and is designed to measure the thickness of 10 preset materials. The TM-8811 features a built-in calibration function, low battery indicator and includes couplant.

Features

  • Measures the thickness of steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
  • Easy-to-read LCD display
  • Displays sound velocity at the touch of a button
  • Automatic material calibration
  • User selectable unit of measure (in/mm)
  • Low battery indicator

REED TM-8811 Specifications

Measuring Range 0.05 to 7.9" (1.5 to 200mm)
Accuracy ±(0.5% + 0.1mm)
Resolution 0.004"/0.1mm
Velocity Range 500 to 9000 m/s
Compatible Materials Steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
Sampling Time Less than 1 sec.
Display 4-Digit, LCD
Probe Length 3' (36")
Low Battery Indicator Yes
Power Supply 4 AA Batteries
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 20 to 80%
Dimensions 6.3 x 2.7 x 1.25" (161 x 69 x 32mm)
Weight 9oz (258g)
Click here for complete specifications on the REED TM-8811

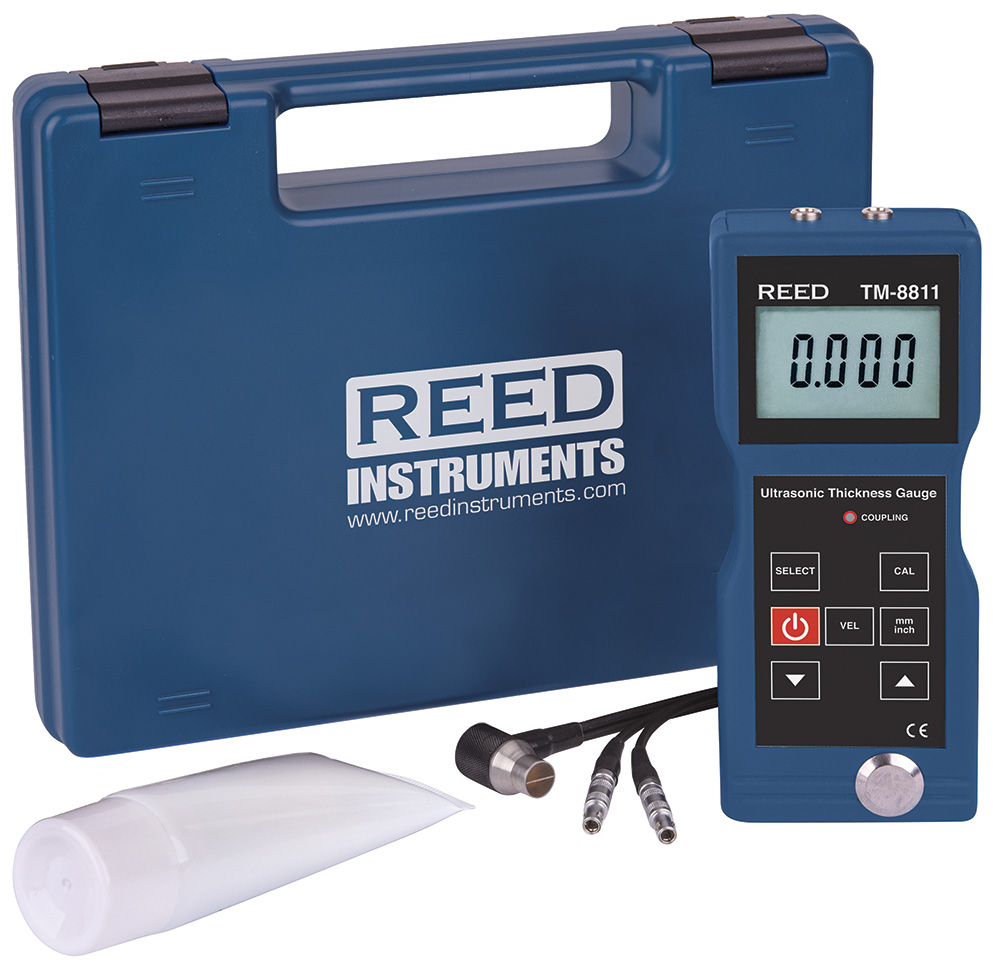

What's included with the REED TM-8811

  • Ultrasonic Thickness Gauge
  • Ultrasonic Couplant Gel
  • Probe
  • Hard Carrying Case
  • Batteries

TM-8811 Ultrasonic Thickness Gauge

Ideal Applications for the REED TM-8811

  • Monitoring and verifying pipes and pressure vessels
  • Industrial manufacturing

Click on a category to view a selection of compatible accessories with the REED TM-8811 Ultrasonic Thickness Gauge.

REED CA-52A Small Soft Carrying Case CA-52A
Features a main instrument compartment and a side pouch for accessories.




REED R8888 Medium Hard Carrying Case R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.




REED TM-8811PROBE Ultrasonic Thickness Gauge Probe TM-8811PROBE
Replacement probe for the REED TM-8811 Ultrasonic Thickness Gauge.




REED R7950 Ultrasonic Couplant Gel R7950
This general purpose ultrasonic couplant gel holds on to horizontal and overhead surfaces. The R7950 is designed to work with ultrasonic thickness gauges and is ideal for iron, steel, aluminum and titanium surfaces.




REED R7950/12 Ultrasonic Couplant Gel, pack of 12 R7950/12
This general purpose ultrasonic couplant gel holds on to horizontal and overhead surfaces. The R7950 is designed to work with ultrasonic thickness gauges and is ideal for iron, steel, aluminum and titanium surfaces.
