REED R8050 Dual Range Sound Level Meter

Model: R8050 | UPC: 800837001481

Downloads: datasheet manual

REED R8050 Dual Range Sound Level Meter

Model: R8050 | UPC: 800837001481

Accurate, fast responding type 2 sound level meter with backlit LCD display.

Your Price	$189.00 USD
Availability	5 Days519 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your R8050 Dual Range Sound Level Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTISL1) for only $305.00 USD

Traceable Calibration Certificate for your R8050 Dual Range Sound Level Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTISL1) for only $305.00 USD

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED REED-WB Windshield Ball for Sound Level Meters

REED-WB

REED R8090 Sound Level Calibrator

R8090

REED R1500 Tripod

R1500

REED R8050 Offers

This sound level meter meets ANSI, and IEC Type 2 standards and features dual range measurement, fast & slow time weighting, data/max hold functions and a tripod mount for long-term monitoring.

Features

High accuracy of ±1.4 dB meets Type 2 standards
Dual range measurement (High and Low)
A & C frequency weighting
Fast & Slow time weighting
Easy-to-read backlit LCD display
Data hold and Max hold functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R8050 Specifications

Measuring Ranges	30-130 dB Low: 30-100 dB High: 60-130 dB
Dynamic Range	70 dB (in each range)
Accuracy	±1.4 dB
Resolution	0.1 dB
Response Time	500mS
Frequency Range	31.5 Hz to 8 kHz
Frequency Weighting	A, C
Time Weighting	Fast/Slow (125ms and 1s)
Microphone	0.5" (12.7mm) electret condenser
Display	4-digit LCD
Backlit Display	Yes
Data Hold	Yes
Max	Yes
Alarm Indicators	Over (visual on-screen)
Auto Shut-off	Yes (after 15 mins)
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	9V battery
Battery Life	Approx 50 hours
Product Certifications	CE, IEC 61672-1 Class 2, ANSI S1.4-1983
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity	10-90%
Dimensions	8.3 x 2.2 x 1.3" (210 x 55 x 32mm)
Weight	8.1oz (230g)

Click here for complete specifications on the REED R8050

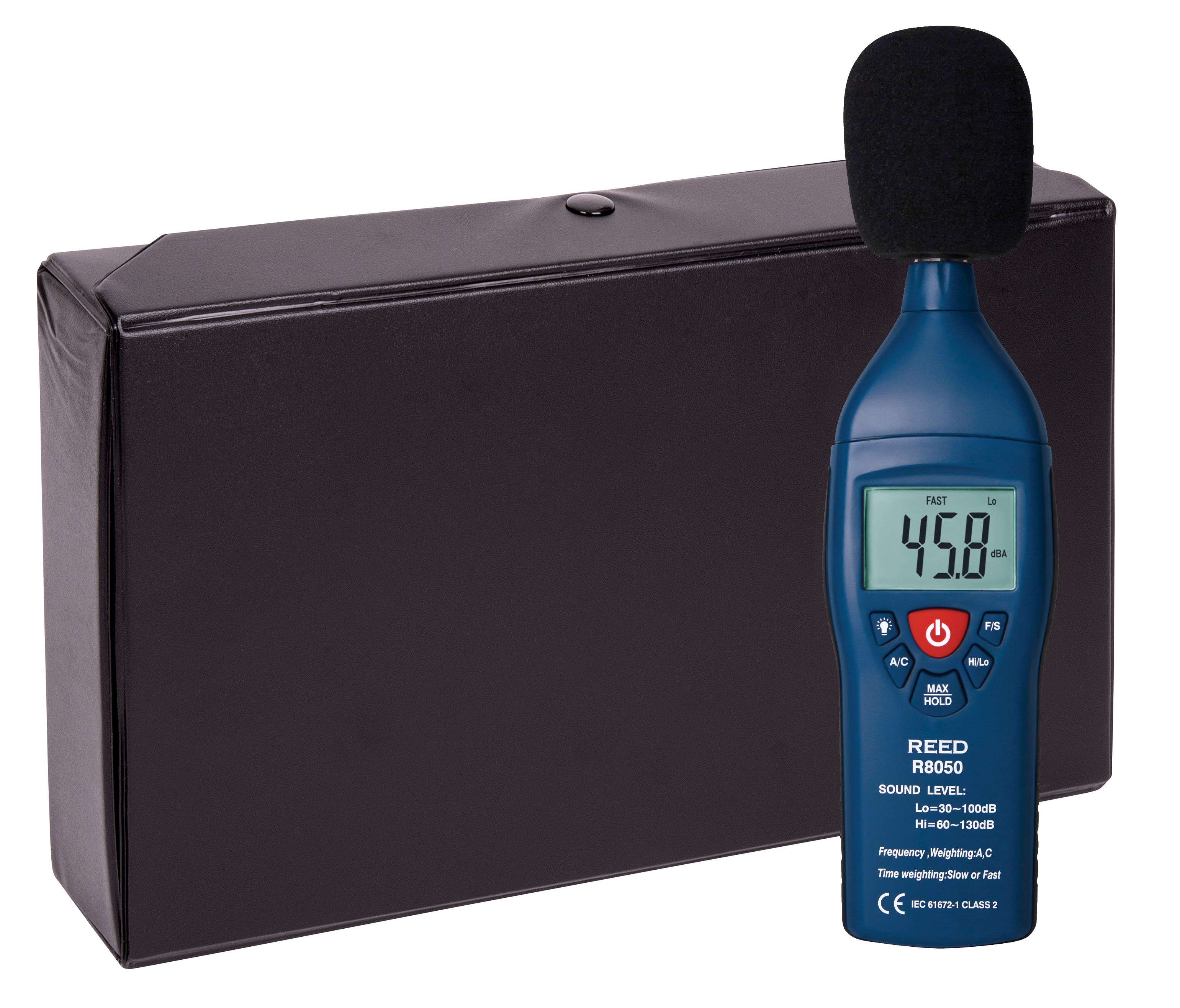

What's included with the REED R8050

Sound Level Meter
Microphone Windshield Ball
Battery
Carrying Case

R8050 Sound Level Meter

Comparing the REED line of Sound Level Meters: Which one is best for you?

Sound level meters are used every day by industrial maintenance teams as part of their preventative maintenance programs; health & safety departments who record acoustic levels during environmental impact studies and inspectors when auditing work environments to ensure safe conditions.

How To: Calibrate your Sound Level Meter

Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.

Ideal Applications for the REED R8050

Preventative Maintenance
Industrial Machinery/Equipment
Construction Sites
Ensuring Safe Working Conditions
Public Venues / Concerts
Code Enforcement
Traffic
Appliance Noise Testing

datasheet for the REED R8050 Dual Range Sound Level Meter manual for the REED R8050 Dual Range Sound Level Meter

Click on a category to view a selection of compatible accessories with the REED R8050 Dual Range Sound Level Meter.

Carrying Cases

REED CA-05A Medium Soft Carrying Case CA-05A

Features a main instrument compartment and a side pouch for accessories.

Windshield Balls

REED REED-WB Windshield Ball for Sound Level Meters REED-WB

This windshield ball is compatible with 1/2" microphones.

Sound Calibrators

REED R8090 Sound Level Calibrator R8090

This sound calibrator generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter.

Tripods

REED R1500 Tripod R1500

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.

Ask a question about REED R8050 Dual Range Sound Level Meter

Customer Reviews for the REED R8050

Description ➕➖

REED R8050 Offers

This sound level meter meets ANSI, and IEC Type 2 standards and features dual range measurement, fast & slow time weighting, data/max hold functions and a tripod mount for long-term monitoring.

Features

High accuracy of ±1.4 dB meets Type 2 standards
Dual range measurement (High and Low)
A & C frequency weighting
Fast & Slow time weighting
Easy-to-read backlit LCD display
Data hold and Max hold functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

Specifications ➕➖

REED R8050 Specifications

Measuring Ranges	30-130 dB Low: 30-100 dB High: 60-130 dB
Dynamic Range	70 dB (in each range)
Accuracy	±1.4 dB
Resolution	0.1 dB
Response Time	500mS
Frequency Range	31.5 Hz to 8 kHz
Frequency Weighting	A, C
Time Weighting	Fast/Slow (125ms and 1s)
Microphone	0.5" (12.7mm) electret condenser
Display	4-digit LCD
Backlit Display	Yes
Data Hold	Yes
Max	Yes
Alarm Indicators	Over (visual on-screen)
Auto Shut-off	Yes (after 15 mins)
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	9V battery
Battery Life	Approx 50 hours
Product Certifications	CE, IEC 61672-1 Class 2, ANSI S1.4-1983
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity	10-90%
Dimensions	8.3 x 2.2 x 1.3" (210 x 55 x 32mm)
Weight	8.1oz (230g)
