Converts multimeter into AC/DC clamp meter.
Converts multimeter into AC/DC clamp meter.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

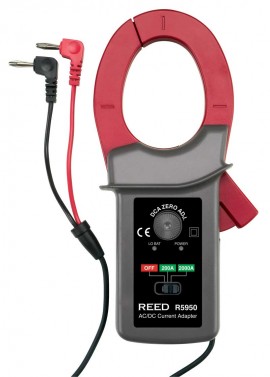

This AC/DC current adapter can be attached to a multimeter and measures up to 2000A. The R5950 features integrated banana plugs, zero adjustment dial and a 3' cable.
Features
| AC/DC Current | |
| Range | 200A, 2000A |
| Accuracy | 200A: ±(1.5% rdg + 1A) 2000A: ±(2% rdg + 5A) |
| AC Current Output | 1mV/A |
| General Specifications | |
| Jaw Opening | 2.2" (56mm) |
| Battery | 9V |
| Low Battery Indicator | Yes |
| Overvoltage Category | CAT.III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 8.3 x 2.5 x 1.3" (210 x 64 x 33mm) |
| Weight | 0.91lb (414g) |
Click on a category to view a selection of compatible accessories with the REED R5950 AC/DC Current Adapter.
| AC/DC Current | |
| Range | 200A, 2000A |
| Accuracy | 200A: ±(1.5% rdg + 1A) 2000A: ±(2% rdg + 5A) |
| AC Current Output | 1mV/A |
| General Specifications | |
| Jaw Opening | 2.2" (56mm) |
| Battery | 9V |
| Low Battery Indicator | Yes |
| Overvoltage Category | CAT.III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 8.3 x 2.5 x 1.3" (210 x 64 x 33mm) |
| Weight | 0.91lb (414g) |
