This voltage/current simulator sources voltage and current and has a 5 digit LCD readout.
This voltage/current simulator sources voltage and current and has a 5 digit LCD readout.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

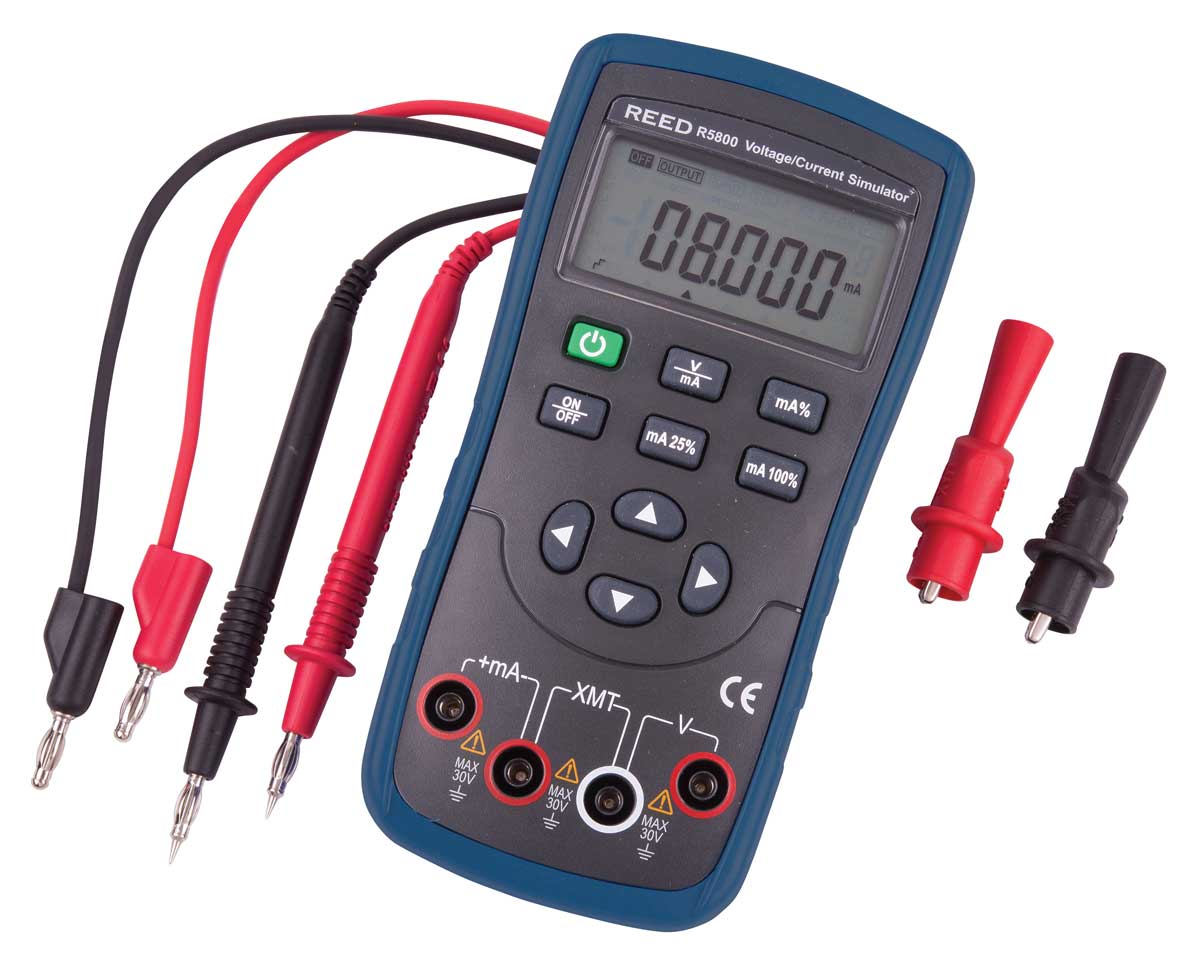

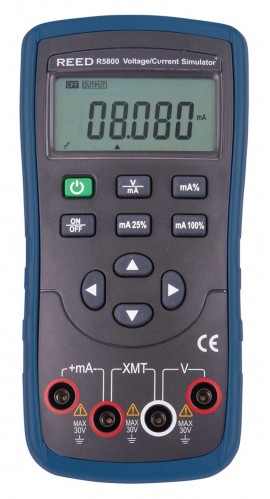

This voltage/current simulator is capable of sourcing voltage and current. The R5800 features an easy-to-read 5-digit LCD display, protective boot and kickstand.
Features
| DC Voltage | |
| Range | 10V |
| Output Range | 0.000 to 11.000V |
| Resolution | 1mV |
| Accuracy | ±0.05% of set value ±2mV |
| DC Current | |
| Range | 20mA |
| Output Range | 0.000 to 22.000mA |
| Resolution | 0.001mA |
| Accuracy | ±0.05% of set value ±4μA |
| Analog Transducer | |
| Range | -20mA |
| Output Range | 0.000 to -22.000mA |
| Resolution | 0.001mA |
| Accuracy | ±0.05% of set value ±4μA |
| Loop Power | |
| Range | 24V |
| Accuracy | ±10% |
| General Specifications | |
| Display | 5-Digit LCD |
| Kick Stand | Yes |
| Battery Life | Approx. 20 hours |
| Power Supply | 2 AA Batteries |
| Auto shut off | Yes (after 15 mins/off) |
| Low Battery Indicator | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity Range | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 7.1 x 3.5 x 1.9" (180 x 90 x 47mm) |
| Weight | 8.2oz (500g) |
Click on a category to view a selection of compatible accessories with the REED R5800 Voltage/Current Simulator.
