Built-in camera capable of taking pictures and recording video. Easily review saved data on the 2.2" color TFT LCD or transfer information to a computer with the included USB cable (no software required).
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR2).
Built-in camera capable of taking pictures and recording video. Easily review saved data on the 2.2" color TFT LCD or transfer information to a computer with the included USB cable (no software required).
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR2).

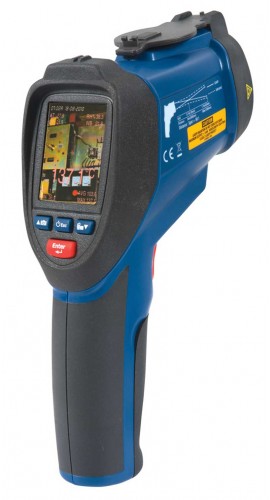

This Video Infrared Thermometer combines the accuracy and convenience of a traditional infrared thermometer with the visual advantage of a digital camera. The R2020 is capable of measuring high temperatures up to 3992°F (2200°C) and includes a number of features including ambient temperature, humidity, dew point and wet bulb temperature measurements.
This instrument can also be mounted to a tripod and setup to continuously monitor an application while graphing live results on-screen.
Features
| IR Temperature | |
| Range | -58 to 3992°F (-50 to 2200°C) |
| Accuracy | -58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg. |
| Resolution | 0.1°F (0.1°C) |
| Contact Type K T/C Temperature | |
| Range | -58 to 2498°F (-50 to 1370°C) |
| Accuracy | -58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Ambient Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | 50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C) |
| Dewpoint and Wet Bulb Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | <40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C) |
| Relative Humidity | |
| Range | 0 to 100% RH |
| Accuracy | 0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5% |
| General Specifications | |
| Optical Resolution (D:S) | 50:1 |
| Dual Laser | Yes |
| Spectral Response | 8 to 14µm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 150ms |
| Display Size/Type | 2.2" TFT Color LCD |
| Backlit Display | Yes |
| Display Hold | Yes |
| High/Low Alarms | Yes (Audible (beep) and visual (on-screen)) |
| Max/Min | Yes |
| Average and Differential | Yes |
| Datalogging Capabilities | Yes |
| F/C Switchable | Yes |
| Trigger Lock | Yes |
| Autoshut off | Yes (adjustable 3,15,60mins) |
| Internal Memory | Yes (72mb), Expandable with micro SD card |
| Thermocouple Input | Yes |
| Tripod Mountable | Yes |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | Li-Ion rechargeable battery |
| Battery Life | Approx. 4 hours continuous use |
| Battery Charge Time | Approx. 2 hours |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-90% |
| Dimensions | 8.1 x 2.4 x 6.1" (205 x 62 x 155mm) |
| Weight | 14.5 oz (410g) |
| IR Temperature | |
| Range | -58 to 3992°F (-50 to 2200°C) |
| Accuracy | -58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg. |
| Resolution | 0.1°F (0.1°C) |
| Contact Type K T/C Temperature | |
| Range | -58 to 2498°F (-50 to 1370°C) |
| Accuracy | -58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Ambient Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | 50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C) |
| Dewpoint and Wet Bulb Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | <40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C) |
| Relative Humidity | |
| Range | 0 to 100% RH |
| Accuracy | 0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5% |
| General Specifications | |
| Optical Resolution (D:S) | 50:1 |
| Dual Laser | Yes |
| Spectral Response | 8 to 14µm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 150ms |
| Display Size/Type | 2.2" TFT Color LCD |
| Backlit Display | Yes |
| Display Hold | Yes |
| High/Low Alarms | Yes (Audible (beep) and visual (on-screen)) |
| Max/Min | Yes |
| Average and Differential | Yes |
| Datalogging Capabilities | Yes |
| F/C Switchable | Yes |
| Trigger Lock | Yes |
| Autoshut off | Yes (adjustable 3,15,60mins) |
| Internal Memory | Yes (72mb), Expandable with micro SD card |
| Thermocouple Input | Yes |
| Tripod Mountable | Yes |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | Li-Ion rechargeable battery |
| Battery Life | Approx. 4 hours continuous use |
| Battery Charge Time | Approx. 2 hours |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-90% |
| Dimensions | 8.1 x 2.4 x 6.1" (205 x 62 x 155mm) |
| Weight | 14.5 oz (410g) |
