Measures AC and DC magnetic fields in milliGauss (mG) or microTesla (µT).
Measures AC and DC magnetic fields in milliGauss (mG) or microTesla (µT).
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

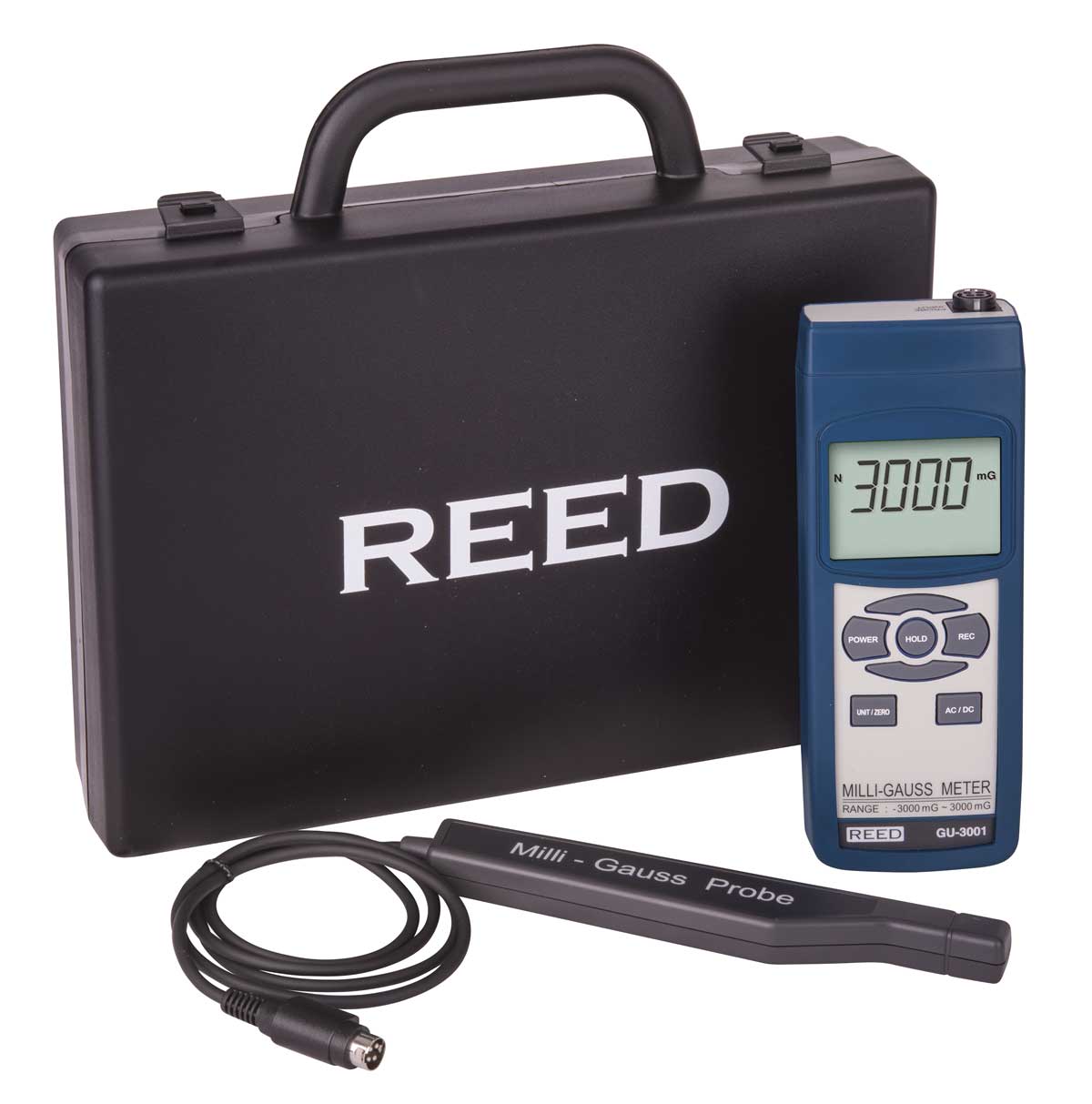

This Electromagnetic Field (EMF) Meter measures both AC and DC magnetic field in milliGauss and microTesla with a uniaxial Hall effect sensor. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.
Features
| Measuring Ranges | -3000 to 3000mG, -300 to 300µT |
| Frequency Response | AC/DC: 40Hz to 10KHz |
| Sensor Type | Uniaxial magnetic probe |
| Accuracy | ±(2% + 2mG) |
| Resolution | -199.9 to 199.9mG: 0.1mG ≥200 or ≤-200mG: 1mG -19.9 to 19.9µT: 0.01µT ≥20 or ≤-20µT: 0.1µT |
| General Specifications | |
| Display | 4-Digit LCD Display |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Sampling Time | Approx. 1 sec |
| Auto Shut-off | Yes (after 10 mins/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 AAA Batteries or AC Adapter (optional) |
| PC Connectivity | USB Cable (optional) |
| Software | SW-U801-WIN Software (optional) |
| Software OS Compatibility | Windows XP / Vista / 7 |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-80% |
| Dimensions | Meter: 6.8 x 2.7 x 1.7" (173 x 68 x 42mm) Probe: 7 x 1.1 x 0.7" (177 x 29 x 17mm) |
| Weight | Meter: 12.3oz (350g) Probe: 2.8oz (78g) |
Click on a category to view a selection of compatible accessories with the REED GU-3001 Electromagnetic Field (EMF) Meter.
