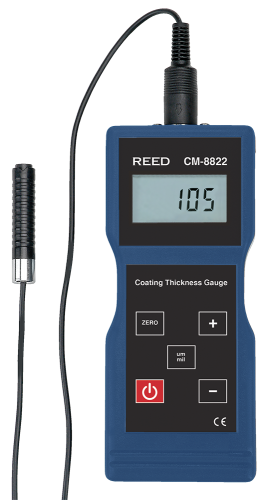

REED CM-8822 Coating Thickness Gauge

Model: CM-8822 | UPC: 800837000323

REED CM-8822 Coating Thickness Gauge

Model: CM-8822 | UPC: 800837000323

Quick responding, capable of measuring ferrous and non-ferrous substrates.

Quick responding, capable of measuring ferrous and non-ferrous substrates.

Your Price $459.00 USD
Availability 11 in Stock
Quantity

Add In-House Traceable Calibration to your CM-8822

Add In-House Traceable Calibration to your CM-8822


REED CM-8822 Offers

This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a easy-to-read LCD display and basic accuracy of 3%.

Features

  • Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates
  • User selectable µm/mils
  • Probe allows for readings in tight spaces
  • Easy-to-read LCD display
  • Automatic probe recognition
  • Zero adjustment button
  • Automatic calibration
  • Low battery indicator

REED CM-8822 Specifications

Measuring Range 0 to 40mils (0 to 1000µm)
Accuracy <100µm: ±2µm
>100µm: ±3% of rdg.
Resolution 0.1µm (0 to 99.9µm)
1µm (<100µm)
Sampling Time 1 second
Display LCD
Zero Button Yes
Length of Probes 3' (36")
Power Supply 4 x AA Batteries
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 20 to 90%
Dimensions 6.3 x 2.7 x 1.25" (161 x 69 x 32mm)
Weight 9oz (260g)
Click here for complete specifications on the REED CM-8822

What's included with the REED CM-8822

  • Coating Thickness Gauge
  • Ferrous Probe
  • Non-Ferrous Probe
  • Calibration Standards
  • Battery
  • Hard Carrying Case

Ideal Applications for the REED CM-8822

  • Verification of paint thickness
  • Automotive industry
  • Plating thickness
  • Industrial manufacturing

Click on a category to view a selection of compatible accessories with the REED CM-8822 Coating Thickness Gauge.

REED CA-52A Small Soft Carrying Case CA-52A
Features a main instrument compartment and a side pouch for accessories.




REED R8888 Medium Hard Carrying Case R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.




REED CM-8822FPROBE Replacement Ferrous Probe CM-8822FPROBE
This ferrous probe measures the thickness of non-magnetic coatings on magnetic metal substrates. For use with the REED CM-8822 Coating Thickness Gauge.




REED CM-8822NFPROBE Replacement Non-Ferrous Probe CM-8822NFPROBE
This non-ferrous probe measures the thickness of non-magnetic coatings on non-magnetic metal substrates. For use with REED CM-8822 Coating Thickness Gauge.




REED R9050 Coating Thickness Calibration Kit R9050
For use with coating thickness gauges.
