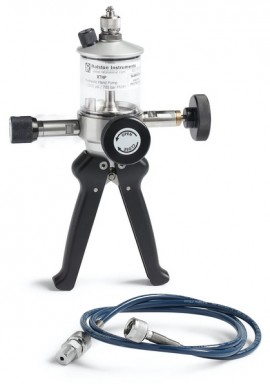

Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi

Model: XTHP-0000

Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi-

Downloads: datasheet

More Ralston Products

Ask an Expert

Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi

Model: XTHP-0000

Powerful and hand-operated, this hydraulic pump quickly generates high pressure up to 10,000 psi (70 MPa) without having to lock a stroke-limiting knob. Compatible with most fluid media, this pump provides steady pressure and comes with a Quick-test stainless-steel-ended hose.

Powerful and hand-operated, this hydraulic pump quickly generates high pressure up to 10,000 psi (70 MPa) without having to lock a stroke-limiting knob. Compatible with most fluid media, this pump provides steady pressure and comes with a Quick-test stainless-steel-ended hose.

Your Price $1350.90 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

Ralston QTHP-0275 Hand Pump Carrying Case for QTHP and XTHP-

Ralston QTHP-0275 Hand Pump Carrying Case for QTHP and XTHP

QTHP-0275

Ralston QTHP-HYDL Bottle of ISO-32 Hydraulic Calibration Oil, 12 fl oz-

Ralston QTHP-HYDL Bottle of ISO-32 Hydraulic Calibration Oil, 12 fl oz

QTHP-HYDL

Ralston FLP1-GV-XF FieldLab Pressure Instrument, 10,000 psi, female QT XT bottom connection-

Ralston FLP1-GV-XF FieldLab Pressure Instrument, 10,000 psi, female QT XT bottom connection

FLP1-GV-XF

Ralston LC10-GV2M Pressure Gauge, 10,000 psi, 0.25" male NPT bottom connection-

Ralston LC10-GV2M Pressure Gauge, 10,000 psi, 0.25" male NPT bottom connection

LC10-GV2M

Ralston DCAP-0065-SS Replacement Outlet Check Valve Assembly for QTHP pumps-

Ralston DCAP-0065-SS Replacement Outlet Check Valve Assembly for QTHP pumps

DCAP-0065-SS

Ralston XTQT-HCSU-XC-QH Male Quick-Test XT x Female Quick-Test Adapter-

Ralston XTQT-HCSU-XC-QH Male Quick-Test XT x Female Quick-Test Adapter

XTQT-HCSU-XC-QH

Ralston XTHP-0000 Offers

Reliable with a sleek design, this hand pump is compatible with most fluid media and provides consistent, steady pressure - even when subjected to temperature fluctuations, shocks, impacts, and hazardous chemicals.

Features

  • Generate pressure up to 10,000 psi (70 MPa)
  • Shock-resistant reservoir
  • Seals made of Viton to stand up to most processed fluids, including ethylene glycol, hydraulic oil, mineral oil, and alcohol
  • Includes a high volume primer to quickly remove air from the valve
  • Fine/adjust piston can change the pressure incrementally up or down to achieve a precise setting once gross test pressure has been reached

Advantages

  • No need to worry about porosity - pump body is made out of all machined stainless steel
  • The choice is yours - the outlet ports are universal outputs, so placement of a reference or placement gauge and hose to the device under test is at the preference of the user
  • No toolbox? No problem - ports are Quick-Test XT, so both hose and reference can be safely attached and removed without tools or thread sealant
  • Quality that lasts - with no painted surfaces on the pump, you won't have to worry about solvents removing any
  • Focus on getting the job done - with no rivets to remove, this pump is an excellent choice for field work

Applications

  • Pressure calibration testing on gauges, transmitters, flow computers and chart recorders
  • Pressure switch testing
  • Testing liquid PSVs in the field
  • Field testing where power inputs are unavailable or unsuitable

Ralston XTHP-0000 Specifications

Hand Pump
Maximum Pressure 10,000 psi/700 bar/70 MPa
Burst Pressure 40,000 psi/2760 bar/275 MPa
Reservoir Volume 4.2 fluid oz
Fine Adjustment Resolution 0.01 psi/0.07 mbar/0.00 kPa
Media Compatibility Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum based oil, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil
Pressure Media Liquid
Outlet Ports Male Quick-test XT, Male Quick-test XT with cap and chain
Materials Pump: Anodized aluminum, stainless steel, delrin, polysulfone
Seal: Teflon, Viton
Operating Temperature -15 to 140°F (-26 to 60°C)
Dimensions 5.7 x 7.5 x 10.6" (14.48 x 19.05 x 26.92 cm)
Weight 3.12 lbs (1.41 kg)
Process Connection
Maximum Pressure 10,000 psi/700 bar/70 MPa
Material Connection: Stainless steel
Seal: Teflon, Viton
Wrench Size ⅝" (16 mm)
Connector End 1: ¼" male NPT (ASME B1.20.1)
End 2: Male Quick-test XT
Operating Temperature 0 to 225°F (-18 to 105°C)
Dimensions 1.29 x 0.63" (3.28 x 1.6 cm)
Hose
Maximum Pressure 10,000 psi/700 bar/70 MPa
Burst Pressure 40,000 psi/2760 bar/275 MPa
Media Compatibility Air, inert gas, natural gas, petroleum based oil, water
Materials Reinforced polyamide, stainless steel
Operating Temperature -40 to 140°F (-40 to 60°C)
Minimum Bend Radius 1" (26 mm)
Dimensions Inner diameter: 0.08" (3 mm)
Outer diameter: 0.24" (7 mm)
Length: 3' (92 cm)
Click here for complete specifications on the Ralston XTHP-0000

What's included with the Ralston XTHP-0000

  • Hydraulic Hand Pump
  • Microbore Hose
  • ¼" Male NPT Process Connection Adapter
  • Bottle

Features and benefits of the Ralston XTHP hydraulic hand pump


Explore the features and benefits of the Ralston XTHP hydraulic hand pump in this video. Compact and easy to use, this hand pump is suitable for fieldwork and high-pressure calibration tests.
datasheet for the Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi

Click on a category to view a selection of compatible accessories with the Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi.

Ralston XTHA-1FS0-QD Female NPT Quick-Connect x Male Quick-Test XT Adapter, 0.13", stainless steel XTHA-1FS0-QD
The pressure adapter connects a quick-test XT hose to a male NPT pressure gauge. The stainless-steel construction is built to last.



Ralston XTHA-2FS0-QD Female NPT Quick-Connect x Male Quick-Test XT Adapter, 0.25", stainless steel XTHA-2FS0-QD
The pressure adapter connects a quick-test XT hose to a male NPT pressure gauge. The stainless-steel construction is built to last.



Ralston XTHA-4FS0-QD Female NPT Quick-Connect x Male Quick-Test XT Adapter, 0.5", stainless steel XTHA-4FS0-QD
The pressure adapter connects a quick-test XT hose to a male NPT pressure gauge. The stainless-steel construction is built to last.



Ralston XTHA-2TS0-QD Tube Fitting x Male Quick-Test XT Adapter, 0.25", stainless steel XTHA-2TS0-QD
The tube adapter offers a snug fit when connected to Swagelok, Parker, Hoke, SSP and Tylok tube fittings. The stainless-steel construction offers reliable strength.



Ralston XTHA-2FSF-QD Female 37° flare (AN/JIC) x Male Quick-Test Adapter, stainless steel XTHA-2FSF-QD
The pressure adapter is made of stainless steel and features Teflon and Viton seal construction. It helps connect male flare fittings to a quick-test hose.



Ralston XTQT-HCSU-XC-QH Male Quick-Test XT x Female Quick-Test Adapter XTQT-HCSU-XC-QH
Use the adapter with your compatible equipment. The stainless-steel construction offers durability.



Ralston QTHP-0200 XTHP Hydraulic Pump Primer Check-Valve Assembly QTHP-0200
The pump assembly is designed for your XTHP hydraulic pump. The check-valve assembly style offers reliability and is made in the USA.



Ralston QTHP-0210 XTHP Gauge Port Assembly, XT, Viton seals QTHP-0210
The replacement assembly is made of stainless steel to help offer lasting use. The Viton seals help create a dependable barrier.



Ralston QTHP-0245 Replacement Body for QTHP and XTHP hydraulic pumps QTHP-0245
The hydraulic pump body is designed specifically for the QTHP and XTHP models. The replacement part is made in the USA for dependability.



Ralston QTHP-0250-VT XTHP Pump Liquid Reservoir and 2 Viton O-rings QTHP-0250-VT
The pump reservoir is designed with 2 Viton O-rings that creates a durable seal. The accessory is made in the USA for dependability.



Ralston QTHP-0255 Replacement Primer Assembly with Viton seals for XTHP hydraulic pumps QTHP-0255
The hydraulic pump accessory is designed specifically for the XTHP model. The primer assembly comes with Viton seals to prevent leaks.



Ralston QTHP-0260 Replacement Reservoir Lid for QTHP and XTHP hydraulic pumps QTHP-0260
The replacement part is designed for QTHP and XTHP hydraulic pumps. It is made in the USA for sturdy and dependable construction.



Ralston XTFT-3SS0 3/8-24 Male SAE x Male Quick-Test XT Outlet Connection with cap and chain XTFT-3SS0
Use the connector with your compatible equipment. The stainless-steel construction offers durability.



Ralston QTHP-0165 QTHP/XTHP Hydraulic Pump Vent Plug Assembly, Viton seals QTHP-0165
The pump accessory is designed for your QTHP or XTHP hydraulic pump model. The Viton seals are great for helping to prevent leaks.



Ralston QTHP-0160-SS XTHP Hydraulic Pump Bleed Valve Assembly, stainless steel, Viton seals QTHP-0160-SS
The pump part is specially designed for your XTHP hydraulic pump. The Viton seals offer dependability, and the assembly is made of stainless steel.



Ralston QTHP-0155-SS XTHP Hydraulic Pump Fine Adjust Assembly, Stainless Steel QTHP-0155-SS
The pump accessory is made of strong stainless steel for durability. It is meant to replace you current hydraulic pump fine adjust assembly.



Ralston DCAP-0065-SS Replacement Outlet Check Valve Assembly for QTHP pumps DCAP-0065-SS
Repair your worn check valve with the replacement assembly. The piece is designed for use with select pumps.



Ralston QTHP-0275 Hand Pump Carrying Case for QTHP and XTHP QTHP-0275
The pump carrying case is designed for QTHP and XTHP models. The case offers IP67 ingress protection to keep the contents safe.



Ralston QTHP-HYDL Bottle of ISO-32 Hydraulic Calibration Oil, 12 fl oz QTHP-HYDL
The hydraulic oil is designed for use in calibration applications. The bottle comes with 12 fl oz (355 ml).



Ralston FLP1-GV-XF FieldLab Pressure Instrument, 10,000 psi, female QT XT bottom connection FLP1-GV-XF
The FieldLab instrument features a color LCD to display values clearly. Onboard data logging allows you to save measurements for later review.



Ralston LC10-GV2M Pressure Gauge, 10,000 psi, 0.25" male NPT bottom connection LC10-GV2M
The digital pressure gauge helps you view high and low values and more. It comes with PC FieldLab software for test, calibration and live viewings.



Ask a question about Ralston XTHP Hydraulic Hand Pump with 3' hose, 10,000 psi
