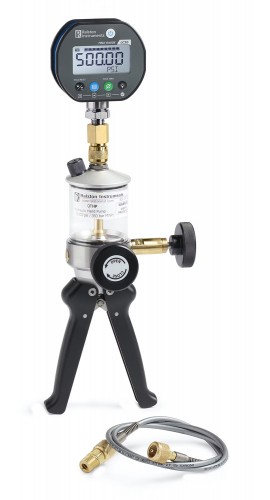

Ralston QTHP Hydraulic Pump Kit with LC20, 1000 psi/7 Mpa-

Downloads: datasheet manual

More Ralston Products

Ask an Expert

Ralston QTHP Hydraulic Pump Kit with LC20, 1000 psi/7 Mpa

Model: QTHP-KIT6-GP

Be the first to review this product

Provide hydraulic test pressure, this hydraulic pump kit is compatible with fluid media and has a high-strength reservoir. This kit includes a hand pump, calibration certificate, pressure reference, connectors, hose, bottle, and cable.

Your Price	$1918.22 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Ralston QTHP-KIT6-GP Offers

Compact and easy to use with a solid stainless steel material and a stable pressure.

Applications

Pressure transmitter calibration
Pressure gauge calibration
Field testing where power inputs are unavailable or unsuitable
Pressure switch testing
Leak testing pressure instruments

Ralston QTHP-KIT6-GP Specifications

Pressure Reference	Digital pressure gauge, 1000 psig pressure
Process Connection	¼" Male NPT
Reference Connection	¼" Female NPT
Hand Pump Burst Pressure	20000 psi/1380 bar/140 MPa
Hand Pump Maximum Pressure	5000 psi/350 bar/35 MPa
Hand Pump Operating Temperature Range	-29 to 140°F (-34 to 60°C)
Pressure Reference Ingress Protection	IP67 (1 meter water submersion for 30 minutes)
Pressure Reference LCD Display	2.4" (61 mm) segmented LCD Display
Reference Connection Maximum Vacuum	0.00 InHg/0.0 kPa
Process Connection Maximum Pressure	5000 psi/350 bar/35 MPa
Hose Maximum Vacuum	-30.00 InHg/-101.6 kPa
Dimensions	5.7 x 6 x 8.6" (14.48 x 15.24 x 21.84 cm)
Weight	3.25 lbs (1.47 kg)

Click here for complete specifications on the Ralston QTHP-KIT6-GP

What's included with the Ralston QTHP-KIT6-GP

Hand Pump
Calibration Certificate
Pressure Reference
2 x Connectors
Hose
Cable
Bottle
