The FieldLab instrument features a color LCD to display values clearly. Onboard data logging allows you to save measurements for later review.
The FieldLab instrument features a color LCD to display values clearly. Onboard data logging allows you to save measurements for later review.

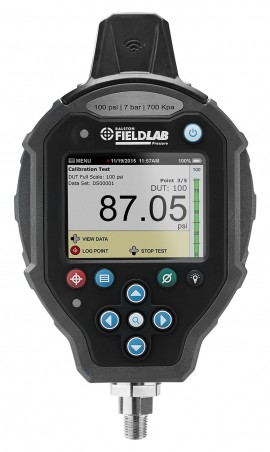

With the Ralston FLP1-GR-2B-W1 FieldLab Pressure Instrument with wireless module, you could run calibration tests wherever you are. It is a flexible portable tool kit that helps you on site. With single button logging of both Device Under Test (DUT) and Reference readings, techs get completely digital logging of test points. Instant tolerance feedback at each point lets you know sooner than later whether to recalibrate. Pressure safety valve crack tests and seat tightness tests can be performed with precision while generating solid data to back up your observations. Follow standard ASME Section 8 or create your own tests to follow your SOPs.
Features
| Pressure Range | Up to 3,000 psi/200 bar/20 MPa; burst pressure: 12,000 psi/825 bar/83 MPa |
| Pressure Accuracy | ±0.02% of full scale; ±0.1% of reading |
| Media Compatibility | Air, inert gas, natural gas, petroleum-based oil, water |
| Process Connection | G 0.25" (6.35 mm) male BSPP (ISO 228) bottom |
| Seal | Teflon, Viton |
| Operating Temperature | 14 to 120°F (-10 to 50°C) |
| Storage Temperature | -20 to 165°F (-29 to 75°C) |
| Power Source | Battery powered (90 to 264 V AC, 50 to 60 Hz) |
| Battery Type | 4.8 Ah lithium-ion rechargeable |
| Battery Life | 1,000 hours |
| Battery Count | 1 |
| Approvals | Certified to CSA Standard C22.2 No. 61010-1, Conforms to UL / IEC / EN / AS Standard No. 61010-1, North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C), ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50°C), IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50°C), UN/DOT 38.3 (Lithium Batteries), Complies with Pressure Equipment Directive 2014/68/EU, Complies with Low Voltage Directive 2014/35/EU, Complies with Electromagnetic Compatibility Directive 2014/30/EU |
| Product Length | 2.5" (6.35 cm) |
| Product Width | 5" (12.7 cm) |
| Product Height | 9" (22.86 cm) |
| Product Weight | 2.58 lbs (1.17 kg) |
| Pressure Range | Up to 3,000 psi/200 bar/20 MPa; burst pressure: 12,000 psi/825 bar/83 MPa |
| Pressure Accuracy | ±0.02% of full scale; ±0.1% of reading |
| Media Compatibility | Air, inert gas, natural gas, petroleum-based oil, water |
| Process Connection | G 0.25" (6.35 mm) male BSPP (ISO 228) bottom |
| Seal | Teflon, Viton |
| Operating Temperature | 14 to 120°F (-10 to 50°C) |
| Storage Temperature | -20 to 165°F (-29 to 75°C) |
| Power Source | Battery powered (90 to 264 V AC, 50 to 60 Hz) |
| Battery Type | 4.8 Ah lithium-ion rechargeable |
| Battery Life | 1,000 hours |
| Battery Count | 1 |
| Approvals | Certified to CSA Standard C22.2 No. 61010-1, Conforms to UL / IEC / EN / AS Standard No. 61010-1, North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C), ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50°C), IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50°C), UN/DOT 38.3 (Lithium Batteries), Complies with Pressure Equipment Directive 2014/68/EU, Complies with Low Voltage Directive 2014/35/EU, Complies with Electromagnetic Compatibility Directive 2014/30/EU |
| Product Length | 2.5" (6.35 cm) |
| Product Width | 5" (12.7 cm) |
| Product Height | 9" (22.86 cm) |
| Product Weight | 2.58 lbs (1.17 kg) |
