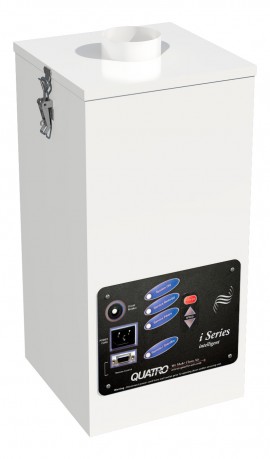

QUATRO SPB100-16 Low Profile Light Duty Solder Fume Extractor, 120 V/60 Hz/1 A

Model: 1-0363-0001 | Order No: SPB100

QUATRO SPB100-16 Low Profile Light Duty Solder Fume Extractor, 120 V/60 Hz/1 A-

Downloads: datasheet

More QUATRO Products

Ask an Expert

QUATRO SPB100-16 Low Profile Light Duty Solder Fume Extractor, 120 V/60 Hz/1 A

Model: 1-0363-0001 | Order No: SPB100

Comes with resettable circuit breaker protection, this light-duty solder fume extractor has built-in whisper quiet features and has a voltage of 120 V. With a certified HEPA filter, this extractor features visual status indicators and audible alarms.

Comes with resettable circuit breaker protection, this light-duty solder fume extractor has built-in whisper quiet features and has a voltage of 120 V. With a certified HEPA filter, this extractor features visual status indicators and audible alarms.

Your Price $903.00 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

QUATRO AA006 Black ESD Arm with clear fume hood and slide valve, unit mount-

QUATRO AA006 Black ESD Arm with clear fume hood and slide valve, unit mount

AA006

QUATRO AA062 Adjustable Mobile Arm, table mount-

QUATRO AA062 Adjustable Mobile Arm, table mount

AA062

QUATRO AG246 Carbon Pre-Filter Wrap-

QUATRO AG246 Carbon Pre-Filter Wrap

AG246

QUATRO F264 HEPA Filter, 99.97%-

QUATRO F264 HEPA Filter, 99.97%

F264

QUATRO H142-12 Hi-Capacity Hose, 12'-

QUATRO H142-12 Hi-Capacity Hose, 12'

H142-12

QUATRO 1-0363-0001 Offers

Features

  • Low-profile, light duty solder fume extractor
  • Built in whisper quiet features
  • Certified HEPA filter (99.97% efficient at 0.3 µm)
  • Resettable circuit breaker protection
  • Digital i-Series control panel: variable speed control, visual status indicators and audible alarms for filter status
  • Manual on/off switch

QUATRO 1-0363-0001 Specifications

Air Flow 170 m³/h /100 CFM
Motor(s) 40 W Turbine
Voltage 120 V/60 Hz/1 A
Inlets 3" (7.6 cm)
Discharge Recirculation grille
Suction Hose 6' (2 m) of heavy duty hose & clamps
Dimensions 9 x 9 x 19" (30 x 230 x 483 mm)
Click here for complete specifications on the QUATRO 1-0363-0001

What's included with the QUATRO 1-0363-0001

  • Solder Fume Extractor
  • HEPA Filter
  • Carbon Pre-Filter Wrap
  • 6' (1.8 m), 3" (76 mm) Diameter Flexible Hose

3D Printing Safety


In recent years, 3D printing has become a frequently used technology that simplifies the way your ideas turn into reality. Although this technology has its benefits, it uses a filament that, when heated, can release harmful substances into the air. These ultrafine particles (UFP) will affect the overall air quality of your workspace and can cause a range of health issues such as: <ul style="webkit-columns: 2; -moz-columns: 2; columns: 2;"> <li>Dizziness</li> <li>Respiratory problems</li> <li>Headaches</li> <li>Amnesia</li> <li>Stomach pains/nausea</li> <li>Irritability</li> <li>Fatigue</li> </ul>
datasheet for the QUATRO SPB100-16 Low Profile Light Duty Solder Fume Extractor, 120 V/60 Hz/1 A Technical Article How to Make Your 3D Printing Workshop Safer

Click on a category to view a selection of compatible accessories with the QUATRO SPB100-16 Low Profile Light Duty Solder Fume Extractor, 120 V/60 Hz/1 A.

QUATRO AA175 Remote Foot-Pedal, 1-station AA175
Conveniently remote start unit from 6 feet away. Compatible with SmartVacs, IVACs, MMP, MP, PS Series.



QUATRO AA006 Black ESD Arm with clear fume hood and slide valve, unit mount AA006
Compatible with the Multi-User Solder Fume Extractor, this ESD arm is 24" (60.9 cm) long and can connect to a clear plastic fume fishmouth on one end and a slide gate on the other.



QUATRO AA062 Adjustable Mobile Arm, table mount AA062
Compatible with air purifiers, dust collectors, and fume extractors, this mobile arm is table-mounted with a clear hood and has a table bracket and balancing slide gate.



QUATRO AG246 Carbon Pre-Filter Wrap AG246
Works with low-profile, light duty solder fume extractor.



QUATRO F264 HEPA Filter, 99.97% F264
Featuring a HEPA certified medical grade cartridge filter with 99.97% efficient at 0.3 µm, and works with low-profile, light duty solder fume extractor.



QUATRO H142-12 Hi-Capacity Hose, 12' H142-12
Heavy duty flexible hose that works with Velocity Brushless Sub-Micron Dust Collectors series.
