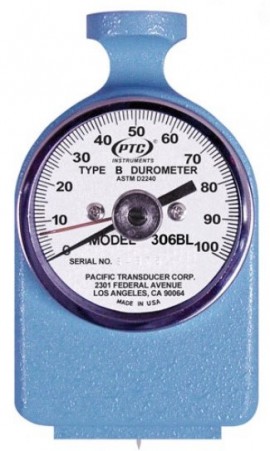

PTC Instruments 306BL Durometer Shore B Scale, 0 to 100 points

Model: 306BL

Be the first to review this product

The analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type B hardness. It has a low glare aluminum dial with bold, easy to read numbers. Comes standard with a Max Hold hand, which retains the peak reading.

Sale Price	$902.50 USD
Regular Price	$950.00 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Recommended Accessories

PTC Instruments 401B Aluminum Test Block ASTM Type B, 0.44 x 2.25 x 0.75"

401B

PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs

473

PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs

471

PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers

7000A

PTC Instruments 320 Durometer Stand Spring Load Cell

320

PTC Instruments 306BL Offers

The analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type B hardness. It has a low-glare aluminum dial with bold, easy-to-read numbers. Comes standard with a Max Hold hand, which retains the peak reading.

Features

Max Hold pointer is standard
Easy-to-read 0 to 100 point dial
Accessory test stands available
A2LA/NIST certification available
Each instrument is individually calibrated
Meets or exceeds current ASTM D2240 specifications for type B

Applications

Moderately Hard Rubber
Elastomers
Paper Products
Fibrous Materials

PTC Instruments 306BL Specifications

Range	Type B: 0 to 100 points
Accuracy	±1 point
Height	4" (10.2 cm)
Width	2.25" (5.7 cm)
Depth	1.75" (4.4 cm)
Weight	8 oz (227 g)
Shipping Weight	3 lbs (1.4 kg)

Click here for complete specifications on the PTC Instruments 306BL

What's included with the PTC Instruments 306BL

Analog Classic Style Durometer (ASTM Type B)
Precision Aluminum Test Block
Carrying Case

datasheet for the PTC Instruments 306BL Durometer Shore B Scale, 0 to 100 points

Click on a category to view a selection of compatible accessories with the PTC Instruments 306BL Durometer Shore B Scale, 0 to 100 points.

Blocks

PTC Instruments 401B Aluminum Test Block ASTM Type B, 0.44 x 2.25 x 0.75" 401B

The aluminum test block is used as a field check of type B durometers. It indicates if the durometer is mechanically sound before use. It is a combination of depth gauge and spring force gauge designed to provide consistent results in a wider temperature range than rubber or plastic blocks.

Stands

PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs 473

The durometer deadweight test stand is designed to provide the ASTM recommended forces. Compatible with classic or ergo style durometers and of other manufacturers provided it can be mounted on an 8 to 32" thread. It comes with both 1-kg (for ASTM type A, B, E, and O) and 5-kg (ASTM C, D, and DO) weight.

PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs 471

The durometer stand is for durometer types A, B, O, and Asker C and is also fully compatible with durometers of other manufacturers. It has a 1-kg weight and test materials up to 3" thick.

PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers 7000A

Each precision-engineered hydraulic durometer stand has a hydraulic damper controlling the rate of descent smoothly, without jump or stutter. The unit is activated with simple smooth lever control. Designed for serious testing and eliminating operator variability and increased accuracy and repeatability.

Cells

PTC Instruments 320 Durometer Stand Spring Load Cell 320

The precision-engineered durometer stand spring load cell provide the ASTM recommended forces for Types A, B, E, O, C, D, and DO. Its innovative design allows the user to lock the table perpendicular to the durometer or to be used in the self-aligning mode to accommodate non-parallel material test specimens.
