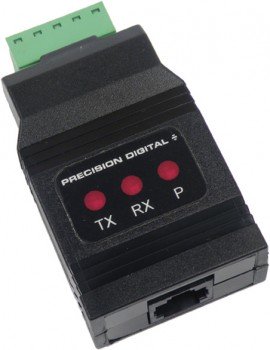

The PDA1485 converts the serial output of the ProVu meter to balanced, full or half-duplex RS-485 signals for use of the free MeterView Pro software.
The PDA1485 converts the serial output of the ProVu meter to balanced, full or half-duplex RS-485 signals for use of the free MeterView Pro software.
The RS-232 port has a female DB9 connector with pins 2 (RX output), 3 (TX input), and 5 (Signal Ground). Pins 7 (RTS) and 8 (CTS) are tied together, and pins 1 (CD), 4 (DTR), and 6 (DSR) are tied together. The adapter is powered by the ProVu meter M-Link connection. The PDA1232 has three diagnostic LEDs: a Power (P) LED to show when the adapter is powered properly, a Transmit Data (TX) LED to show when the adapter is sending data out from the PC side, and a Receive Data (RX) LED to show when the adapter is receiving data from the ProVu meter.
| Cable | 3 (0.9m) standard modular cable provided |
| Compatibility | EIA-232 |
| Connectors | PC compatible 9-pin D subminiature connector (DB9) and RJ11 (adapter to meter) |
| Cable | 6' (1.8m) standard Cat5e cable provided with adapter |
| Distance | Adapter to ProVu meter: 6' (1.8m) max Adapter to computer: 50' (15m) max Serial interface cable not provided |
| Power | Powered by ProVu meter M-Link connection |
| Status Indication | Separate LEDs for Power (P), Transmit (TX), and Receive (RX) |
| Cable | 3 (0.9m) standard modular cable provided |
| Compatibility | EIA-232 |
| Connectors | PC compatible 9-pin D subminiature connector (DB9) and RJ11 (adapter to meter) |
| Cable | 6' (1.8m) standard Cat5e cable provided with adapter |
| Distance | Adapter to ProVu meter: 6' (1.8m) max Adapter to computer: 50' (15m) max Serial interface cable not provided |
| Power | Powered by ProVu meter M-Link connection |
| Status Indication | Separate LEDs for Power (P), Transmit (TX), and Receive (RX) |
