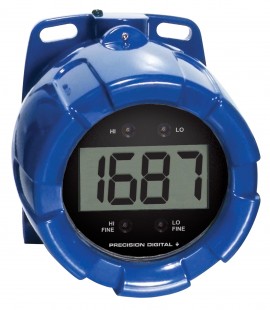

Precision Digital PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight

Model: PD6870-0K0

Be the first to review this product

Intrinsically safe loop powered panel meter that features a backlight so you can see the display under any lighting condition. It is 4-20mA loop powered and HART protocol transparent.

Your Price	$624.00 USD
Availability	1 to 2 Weeks1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPM1) for only $105.00 USD

Traceable Calibration Certificate for your PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPM1) for only $105.00 USD

Recommended Accessories

Precision Digital PDA6846 U-Bolt Kit with one U-bolt, 2"

PDA6846

Precision Digital PD6870-0K0 I.S. Loop-Powered Panel Meter Offers

Features

Explosion-proof for use in Class I, Division 1, Groups B, C, D. Class II, Division 1, Groups E, F, G. Class III, Division 1; T6. Class I, Zone 1, AExd IIC T6 Gb. Zone 21, AEx tb IIIC T85°C. Ta = -40 to 75°C
4-20 mA loop powered
HART® protocol transparent
Numeric display will read from -1999 to 1999 over a 2000 count user adjustable scaling span
Display mountable at 0°, 90°, 180° and 270°
Enclosure has two 3/4" NPT threaded conduit openings, one 3/4" NPT nickel plated brass conduit plug with 10mm hex key fitting installed
May be mounted directly to conduit; two slotted flanges for wall mounting or NPS 1-1/2" to 2-1/2" or DN 40 to 65 mm pipe mounting
IP68, NEMA 4X enclosure
Loop-powered backlight option lets you see the display under any lighting condition

Applications

Ideal for the following applications: Aerospace, Industrial, Commercial, Education.

Precision Digital PD6870-0K0 Specifications

Input	4-20 mA
Accuracy	±0.1% f.s ±1 count
Temperature Drift	150 ppm/°C from -40 to 75°C ambient
Calibration Range	4 mA input: -1000 to +1000; 20 mA between 20 and 2000 counts greater than 4 mA display. Two point linear display span
Max. Voltage Drop	1VDC at 20mA without backlight; 4VDC at 20mA with loop-powered backlight
Input Overload	Over current protection to 2A max.
Display	3-1/2 digit LCD, 1" (25.4 mm); -1,999 to 1,999
Display Update Rate	2.5 updates/second

Click here for complete specifications on the Precision Digital PD6870-0K0

What's included with the Precision Digital PD6870-0K0

Precision Digital PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight

datasheet for the Precision Digital PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight

Click on a category to view a selection of compatible accessories with the Precision Digital PD6870-0K0 I.S. Loop-Powered Panel Meter with Backlight.

Mounts

Precision Digital PDA6846 U-Bolt Kit with one U-bolt, 2" PDA6846

Conveniently mount instruments with this U-bolt kit which includes all the necessary hardware to mount the instruments to 2" pipes. This kit includes one U-bolt and hardware.
