This loop-powered meter boasts flameproof protection. It's strong enough to endure hazardous applications.
This loop-powered meter boasts flameproof protection. It's strong enough to endure hazardous applications.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Loop Calibration Modules category for similar products.
Or let's do a search and help you find what you need:

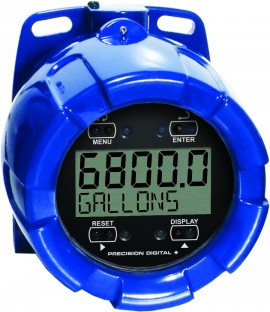

For ultimate field endurance, choose the Precision Digital PD6800-0K0 ProtEX-Lite Explosion-Proof Loop-Powered Meter with Backlit LCD. This meter is crafted for extreme durability in even the most hazardous environments. Plus, it can be mounted to either a wall or a pipe depending on the needs of your setup. The display comes with a backlight for viewing in direct sunlight, and it reads up to 2,999 units.
Features
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current |
| Output | None |
| Display | 5 and 7-digit dual-line LCD with standard backlighting |
| Reading Range | -1,999 to 2,999 |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum |
| Noise Filter | High, low, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 3.62" (92 mm) |
| Product Width | 4.3" (109 mm) |
| Product Height | 4.27" (108 mm) |
| Product Weight | 40 oz (1.13 kg) |
| Manufacturer Warranty | 3 years |
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current |
| Output | None |
| Display | 5 and 7-digit dual-line LCD with standard backlighting |
| Reading Range | -1,999 to 2,999 |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum |
| Noise Filter | High, low, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 3.62" (92 mm) |
| Product Width | 4.3" (109 mm) |
| Product Height | 4.27" (108 mm) |
| Product Weight | 40 oz (1.13 kg) |
| Manufacturer Warranty | 3 years |
