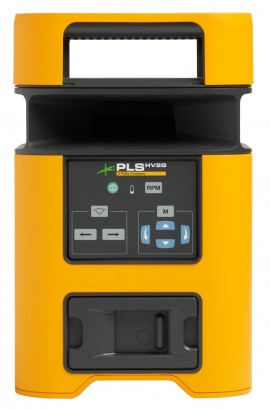

A self-leveling green laser that emits a horizontal laser plane, along with a vertical laser plane when used in the vertical position. Ideal for setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation. Comes with a rotary laser detector.
A self-leveling green laser that emits a horizontal laser plane, along with a vertical laser plane when used in the vertical position. Ideal for setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation. Comes with a rotary laser detector.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Test Equipment Rentals category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| Laser | Class II green |
| Laser Axis | Horizontal and vertical |
| Accuracy | ≤3/32" at 100' (≤2.2 mm at 30 m) |
| Auto-Leveling Range | ±5° |
| Manual Slope Range | ±5° |
| Working Range | Without XLD laser detector: ≤100' (30 m) With XLD laser detector: ≤1000' (300 m) |
| Drop Test | 1 m |
| IP Rating | IP67 |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Power Source | 4 x D Alkaline or NiMH rechargeable |
| Battery Life | >60 hours |
| Weight | 6.6 lbs (3 kg) |
| Laser | Class II green |
| Laser Axis | Horizontal and vertical |
| Accuracy | ≤3/32" at 100' (≤2.2 mm at 30 m) |
| Auto-Leveling Range | ±5° |
| Manual Slope Range | ±5° |
| Working Range | Without XLD laser detector: ≤100' (30 m) With XLD laser detector: ≤1000' (300 m) |
| Drop Test | 1 m |
| IP Rating | IP67 |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Power Source | 4 x D Alkaline or NiMH rechargeable |
| Battery Life | >60 hours |
| Weight | 6.6 lbs (3 kg) |
