PLS H2 KIT Horizontal Red Rotary Level Laser Kit with Tripod & Grade Rod

Model: PLS H2 KIT | UPC: 095969878432

Be the first to review this product

Featuring an easy-to-use and rugged rotary laser with an ergonomic design and simplified controls, designed for interior and exterior projects. Kit includes elevating tripod and 16' grade rod.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Recommended Accessories

PLS RBP10 Rechargeable Battery for the H2 & HV2

PLS RBP10

PLS PLS H2 KIT Offers

Features

Horizontal only rotary laser that offers a simple one button operation
Easy-to-use and fully self-leveling, designed for interior and exterior layout projects
IP67 certified protected from dust and immersion in water with a depth of up to 3.3 ft (or 1 m) for up to 30 minutes
1-meter drop tested

Applications

Construction
Electrical
Plumbing
Landscaping

PLS PLS H2 KIT Specifications

Laser	Class II red
Laser Axis	Horizontal only
Accuracy	≤3/32" at 100' (≤2.2 mm at 30 m)
Auto-Leveling Range	±5°
Manual Slope Range	±5°
Working Range	Without XLD laser detector: ≤100 ft (30 m) With XLD laser detector: ≤1000 ft (300 m)
Drop Test	1 m
IP Rating	IP67
Operating Temperature	-4 to 122°F (-20 to 50°C)
Battery	Type: 4 x D Alkaline or NiMH rechargeable Life: >60 hours
Weight	6.4 lbs (2.89 kg)

Click here for complete specifications on the PLS PLS H2 KIT

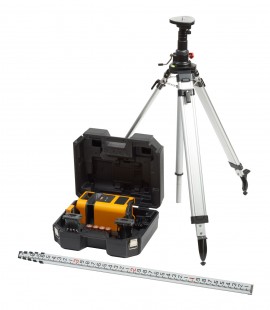

What's included with the PLS PLS H2 KIT

Rotary Laser Level
Alkaline Battery Tray with 4 x D Batteries
NiMH Rechargeable Battery Tray with Universal Charging Cord
Rotary Laser Detector
Clamp
Red Reflective Target
Elevator Tripod
Grade Rod
Safety Sheet
Quick Reference Guide

datasheet for the PLS H2 KIT Horizontal Red Rotary Level Laser Kit with Tripod & Grade Rod

Click on a category to view a selection of compatible accessories with the PLS H2 KIT Horizontal Red Rotary Level Laser Kit with Tripod & Grade Rod.

Batteries

PLS RBP10 Rechargeable Battery for the H2 & HV2 PLS RBP10

For use with the H2, HV2R, and HV2G rotary laser levels.
