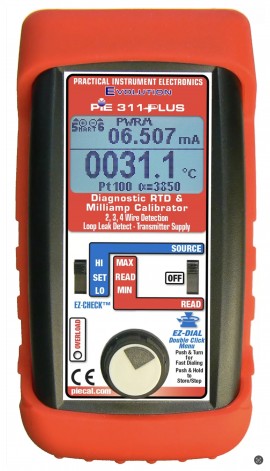

PIECAL PIE 311PLUS Offers

Two calibrators in one

Calibrate all your RTD instruments AND your milliamp loops with this unit. It has all the functions of a 12 type RTD calibrator and can source 0 to 24 milliamps or simulate a two wire transmitter like a milliamp calibrator. You may also perform stand alone calibrations of two wire transmitters by simultaneously supplying the RTD input signal while supplying the 24 volts to power up the transmitter and monitoring the milliamp output signal. Powers HART transmitters with built-in 250 ohm resistor simplifying hookups with HART communicators.

Troubleshoot loop problems

Quickly diagnose ground fault and current leakage with the patented loop diagnostic technology

Calibrate directly in temperature (°C and °F)

The unit works with the RTDs you use including Platinum 10, 50, 100, 200, 500 and 1000 Ohm (alpha = 3850), Platinum 100 Ohm (alpha = 3902, 3916, 3926), Copper 10 and 50 Ohm, and Nickel 120 Ohm. Or calibrate from 0.000 to 400.000 and 0.00 to 4000.00 Ohms. For RTDs the fixed or pulsed sensor current is measured by the calibrator.

Measure RTD sensors

Trouble shoot sensor connections and find broken wires with patented technology. Connect your two, three or four wire RTDs and the unit automatically detects the connections and measures the RTD in degrees C or F. Secondary display shows the resistance value corresponding to the RTD temperature.

Compatible with ALL process instruments

Connect directly to the temperature inputs of transmitters, PLCs, DCS and multichannel recorders to verify their outputs or displays. RTD simulation works with older instruments with fixed excitation currents and newer multichannel instruments that switch the excitation current between input channels.

Checkout all your 4 to 20 mA loops and instruments

With the built-in milliamp calibrator you can check, calibrate and measure all your current signal instruments in a 4 to 20 milliamp loop. It can be used at any access point in your loop. Source and Read 0.000 to 24.000 mA, Simulate a 2 Wire Transmitter or use the unit to simultaneously power your 2 Wire Transmitter and measure its output while simulating the sensor input.

Easy to use in the plant, field or shop

With this unit you can check and calibrate all your RTD instruments, measure RTD Sensors, and calibrate 4 to 20 milliamp instruments. Automatic indication of connections on the display for simple hookups. Carry it without worry – it comes protected with a rubber boot and rugged, low profile switches. Easy to operate even in dark areas with the backlit display.

Fast calibration with automatic output stepping

Choose between 2, 3, 5, 11 and 21 steps to automatically increment the output in 100%, 50%, 25%, 10% or 5% of span. Select the step time to match your system from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds.
