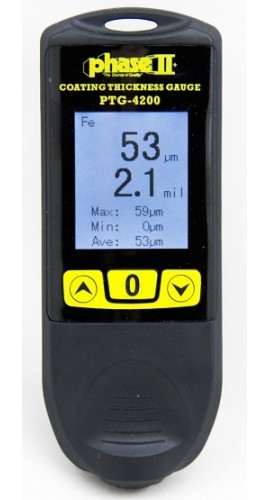

Phase II PTG-4200 Integrated Coating Thickness Gauge with Auto-Detect

Model: PTG-4200

Phase II PTG-4200 Integrated Coating Thickness Gauge with Auto-Detect

Model: PTG-4200

The PHASE II PTG-4200 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. It can easily detect the coating thickness of nonmagnetic coating on a magnetic substrate or an insulating coating on a non-magnetic conductive substrate utilizing our auto-detect, integrated probe.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Phase II PTG-4000 Integrated Coating Thickness Gauge with Auto-Detect

Model: PTG-4000

The Phase II PTG-4000 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. With this state of the art gauge, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe.

Learn More

Phase II PTG-4200 Offers

Features

3 digit selectable color LCD w/flip screen
Measuring range of 0-1,250 um max. or 0-50 mils
Resolution of 1um / 0.1mils
With auto-detect, integrated probe
Automatically detect a Ferrous or Non-Ferrous substrate

Applications

Automotive Auctions
Electrical/Mechanical Engineering
Commercial Inspection
Manufacturing

Phase II PTG-4200 Specifications

Accuracy	±3% + 2UPPER(m ( +/-3%+0.1 mil )
Statistics	Min/Max, Average
Min. measuring area	0.2" x 0.2" (5mm x 5mm)
Min. radius of curvature	Convex: 0.12" (3mm) Concave: 1.2" (30mm)
Min. substrate thickness	Convex: Ferrous: 20 mils (0.5mm) Non-ferrous: 2 mils (50 u m)
Max. Surface temperature of test object	302 degrees F (contact time max is 2 seconds)
Power source	2-AAA batteries
Dimensions	119 x 45 x 27mm
Weight	2.4oz. (w/o Batteries)

What's included with the Phase II PTG-4200

Coating thickness gauge
2 substrate samples(steel,aluminum)
4 calibrated thickness samples
Batteries
Operation manual
Carry case
