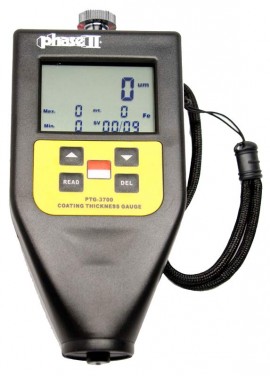

Phase II PTG-3700 Coating Thickness Gauge Paint Thickness

The NEW! Phase II PTG-3700 coating thickness gauge/paint thickness gauge is the latest, state-of-the-art thickness gauge in which you can easily detect the thickness of non-magnetic coatings on magnetic(ferrous) substrates or an insulating coating on a non-magnetic conductive substrate(non-ferrous). The PTG-3700 coating thickness gauge utilizes an integrated auto-detect probe, while the PTG-3750 coating thickness gauges uses an external probe.

The auto detect probes on these coating thickness gauges/paint thickness gauges use both eddy current and magnetic induction technologies.

The PTG-3700 series coating thickness gauges/paint thickness gauges are full featured w giant screen, backlighting, wider measuring range, advanced memory, browsing and statistics, such as min/max values, averaging and counters.

The PTG-3700 coating thickness gauges/paint thickness gauges can be used in many areas of industry including mfg, general engineering, commercial inspection and automotive apps.

• Measuring Range: 0-1250um or 0-50mils
• Resolution: 0.1um to 100um, 1um over 100um
• Accuracy: +/-1-3%N or 2.0um, whichever is greater
• Min measuring area: .2” x .2” (5mm x 5mm)
• Min substrate thickness: ferrous 20 mils(.5mm), Non-ferrous 2mils(50um)
• Min radius of curvature: Convex .12” (3mm), Concave 1.2” (30mm)
• Max surface temp: 302 °F (2 second contact)
