Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

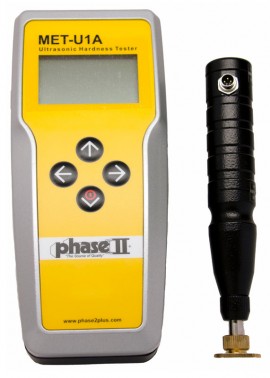

Featuring data archive capability, Phase II MET-U1A Ultrasonic Portable Hardness Tester has a large LCD display with backlight and easy to read menu function.
The PHASE II ultrasonic/dynamic portable hardness testers are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Unlike the standard Dynamic hardness testers, these "state-of-the-art" portable hardness testers incorporate "Ultrasonic UCI" technology, which enables the hardness testing of very thin and small workpieces, which otherwise could not be tested accurately using a portable device. Non-destructive in it's function, these hardness testers allow for the testing of highly sensitive or finished parts that previously could not be tested in an operational setting. The non-destructive (ndt) feature of these hardness testers allow the operator to accurately test parts without causing physical or structural damage that would normally lead to disposal or refinish of operators part.
The Phase II MET series of portable hardness testers offers a model that include a dynamic probe for easy, quick hardness testing of parts with a mass greater than 5kg. A hardness testing method based on the measurement of the frequency shift of a resonating rod caused by the essentially elastic nature of the finite area of contact between the indenter and the test piece during the penetration. Described as a hardness testing practice using a calibrated instrument by pressing a resonating rod with a Vickers style Diamond indentor with a fixed force against the surface of the part to be tested.
Functions:
