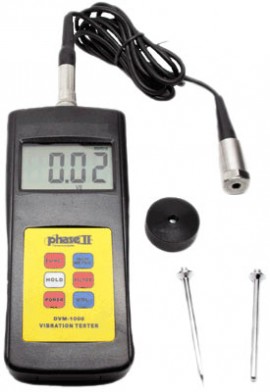

Phase II DVM-1000 Digital Vibration Tester

Model: DVM-1000 | UPC: 641799822079

Be the first to review this product

Phase II DVM-1000 Digital Vibration Tester-

Downloads: datasheet manual

More Phase II Products

Ask an Expert

Phase II DVM-1000 Digital Vibration Tester

Model: DVM-1000 | UPC: 641799822079

Be the first to review this product

Multi-functional meter is capable of measuring Velocity, Acceleration, Displacement and RPM Frequency.

Sale Price	$738.00 USD
Regular Price	$821.10 USD
Availability	5 Days
Quantity	Quantity

Phase II DVM-1000 Offers

Features

Quick accurate analysis for checking balance and alignment of a rotating object
Large LCD display
Statistics: mean, max, mIN, no. of measurements and std. deviation
Inch/ metric conversion with the push of a button
Max hold function
Regulated output (AC output 2.0v peak full scale)
Complete with 1-powerful magnet, 1 -accelerometer, 1-stinger probe(cone), 1-stinger probe (ball), operation manual
Carry case

Phase II DVM-1000 Specifications

Acceleration	Peak Value: 0.1 to 200 m/s at Frequency Range: 10 to 1000 Hz (0.3 to 656 ft/m/s at Frequency Range: 10 to 10,000 Hz)
Velocity	(RMS) RMS: 0.004 to 16.9"/s (0.1 to 400 mm/s) at Frequency Range: 10 to 500Hz
Displacement	Peak to Peak: 0.001 to 2.0 mm (0.04 to 80 mil) at Frequency Range: 10 to 500 Hz
RPM (revolution)	5 to 100,000 r/min
Frequency	0.1 to 10 KHz
Accuracy	<5%
Operating Temperature	32 to 133°F (0 to 45°C)
Power	4 x AAA Batteries
Dimensions	6.34 x 2.72 x 1.26" (161 x 69 x 32 mm)
Weight	0.66 lb (300 g)

Click here for complete specifications on the Phase II DVM-1000

What's included with the Phase II DVM-1000

Powerful Magnet
Accelerometer
Stinger Probe (Cone)
Stinger Probe (Ball)
Operation Manual
Carrying Case

How to use the Phase II DVM-1000 Digital Vibration Tester

This introductory video will detail the features, functions and applications of this digital vibration meter. It is designed to obtain balance and alignment data on many different types of rotating or moving objects. Keep watching to learn how easy it is to utilize the different functions, take tests, and obtain results with this meter.

datasheet for the Phase II DVM-1000 Digital Vibration Tester manual for the Phase II DVM-1000 Digital Vibration Tester

Ask a question about Phase II DVM-1000 Digital Vibration Tester

Customer Reviews for the Phase II DVM-1000

Description ➕➖

Phase II DVM-1000 Offers

Features

Quick accurate analysis for checking balance and alignment of a rotating object
Large LCD display
Statistics: mean, max, mIN, no. of measurements and std. deviation
Inch/ metric conversion with the push of a button
Max hold function
Regulated output (AC output 2.0v peak full scale)
Complete with 1-powerful magnet, 1 -accelerometer, 1-stinger probe(cone), 1-stinger probe (ball), operation manual
Carry case

Specifications ➕➖

Phase II DVM-1000 Specifications

Acceleration	Peak Value: 0.1 to 200 m/s at Frequency Range: 10 to 1000 Hz (0.3 to 656 ft/m/s at Frequency Range: 10 to 10,000 Hz)
Velocity	(RMS) RMS: 0.004 to 16.9"/s (0.1 to 400 mm/s) at Frequency Range: 10 to 500Hz
Displacement	Peak to Peak: 0.001 to 2.0 mm (0.04 to 80 mil) at Frequency Range: 10 to 500 Hz
RPM (revolution)	5 to 100,000 r/min
Frequency	0.1 to 10 KHz
Accuracy	<5%
Operating Temperature	32 to 133°F (0 to 45°C)
Power	4 x AAA Batteries
Dimensions	6.34 x 2.72 x 1.26" (161 x 69 x 32 mm)
Weight	0.66 lb (300 g)
